Features:

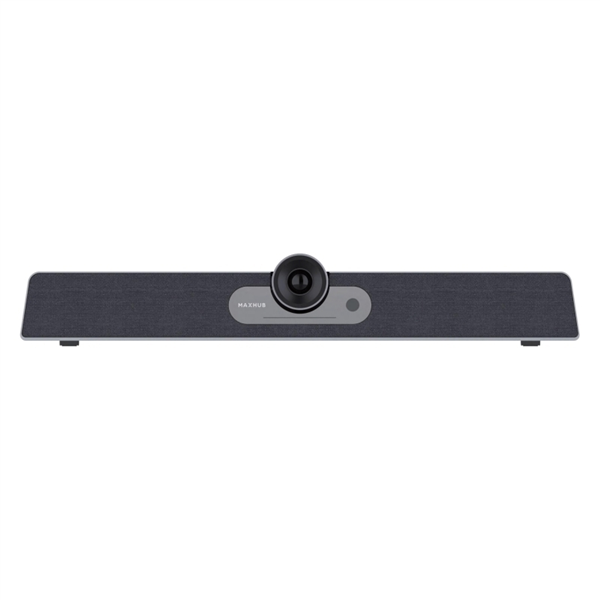

The Maxhub UC S07 is an all-in-one video bar featuring a high-quality camera, studio-quality speaker as well a wide microphone range that satisfies the demand for larger space

• A simple all-in-one unified communication solution supports connecting with a laptop, working as a camera, speaker, and microphone
• Ultra HD 4K Sony sensor with advanced image processing
• 5x digital zoom, electronic pan/tilt/zoom, and up to 10 presets
• Intelligence framing technology combines human detection and DOA voice tracking
• 6 beamforming microphone arrays with 11W speaker
• Multi-colour LED, light bar indicating camera and microphone status

Specification:

• Type: UC Bar
• Camera
• Pixel: 12m
• Sensor: 1/2.3-inch 12MP Sony sensor.3
• Resolution and Frame Rate
• Zoom: 5x digital zoom
• Output Format: MJPG: YUY2, H.264
• Focus Mode: Fixed-focus
• Focus Distance: 1m
• Power
• Power Requirements: 12V
• Overall Power(Max.) 10W
• Microphone
• Microphone Quantity: 6
• Voice Pickup Range: 8m
• Microphone Frequency Range: 100Hz to 7.5kHz
• Input and Output Port
• USB Type-C: USB 3.0
• Audio Out: 3.5mm
• DC 2.0: Power Jack, EITA type DC IN 12V
• Dimensions: 462 x 76x 93mm
• Colour: Black
• OEM: UCS07

Downloads:

• MHUCS07.pdf
