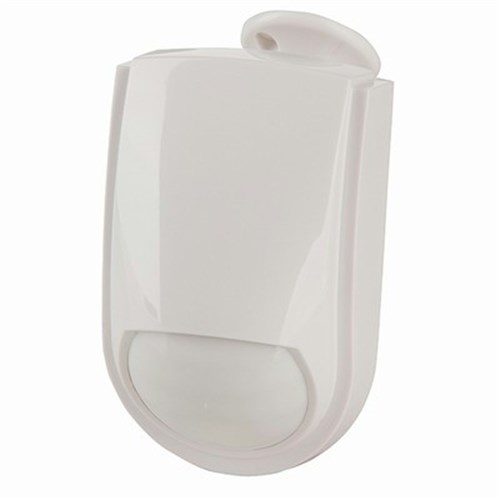

PIR PULSE QUAD ELEMENT TEMP COMP NC 12V
Code: LA5046
- Reliable and effective dual and quad element PIR detectors for home or office security applications. Both units are compact, attractive and easy to in...
LA5046
1 Year Warranty
Reliable and effective dual and quad element PIR detectors for home or office security applications. Both units are compact, attractive and easy to install with the features to match. Each has a built-in automatic temperature compensation to help eliminate false triggers in certain environments. 110 degree convex honey comb hemispherical infrared lenses are used and each unit has an extremely low current draw at 8mA. Both feature a swivel bracket for quick position adjustment. This quad unit offers higher levels of detection than the dual element model.
Features:
Operating voltage: 9-15VDC
Current draw: 8mA nominal at 12VDC
Detection type: Dual element low noise pyroelectric sensor
Range: 12m max
Field of view: 110 degrees max
Mounting height: 1.5m-2.4m
LED indicator: Walk test enabled by internal link
Alarm output: NC, when cover on, 28VDC 0.1A
Tamper switch
Warm up period: 90 seconds
Pulse count: 1, 2 and 4 pulses selectable
