C/B 5A 50VDC/250VAC
Code: 8205751

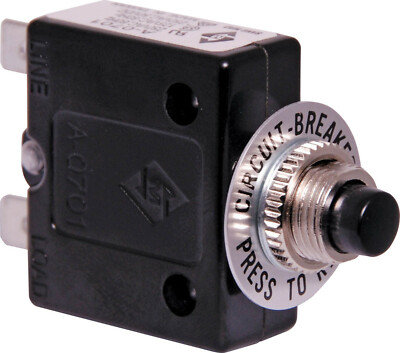

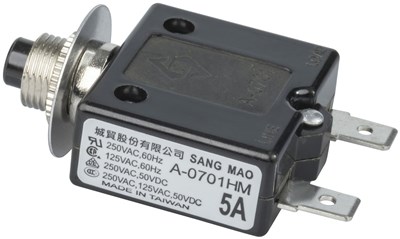

Introducing the SF2254, a robust and versatile panel mount circuit breaker suitable for both AC and DC circuits, with a standard rating of 5 amps. This product is available in current ratings ranging from 3A to 25A and is certified for 250VAC, meeting SAA approval standards.
**Key Specifications:**
- Maintains 100% of rated current indefinitely at 25°C
- Derates at elevated temperatures
- Features a manual push-to-reset function
- Insulation resistance exceeds 100M ohm
- Designed with a 12mm mounting hole diameter
Ideal for various applications, the SF2254 ensures reliable performance and safety.
Please note: Prices are shown including GST (where applicable) and are in AUD$
