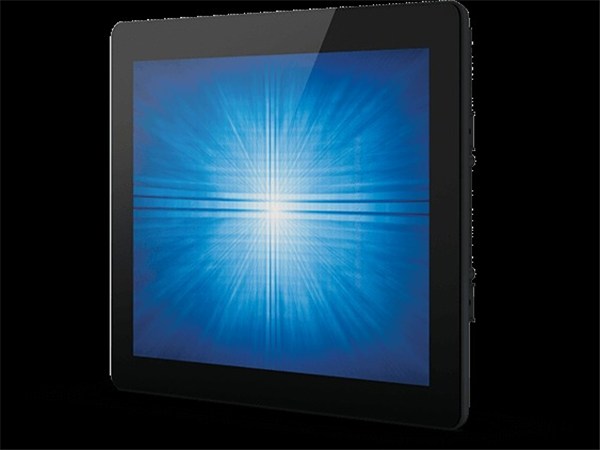

The Elo 1990L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Elo E330817 701859
The Elo 1990L 19-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Our TouchPro PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Specifications:
Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size: 19" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 5:4
Active Area: 376.32 x 301.06mm
Resolution: 1280 x 1024
Horizontal Viewing Angle: 85 or 170 total
Vertical Viewing Angle: 80 or 160 total
Number of Colors: 16.7 million
Brightness (typical) LCD panel: 250 nits
Brightness (typical) TouchPro PCAP: 225 nits
Response Time-total (typical): 5ms
Contrast Ratio: 1000:1
Input Video Format: HDMI, VGA, or DisplayPort
Touch Interface: USB
Input Voltage: 12VDC (PSU NOT included)
Input Connector: DC Jack Pin OD: 2.0mm, Barrel ID: 6.4mm, Barrel len 8.8mm
Power Consumption On: 22 W
Power Consumption Sleep: 1.5 W
Power Consumption Off: 0.5W
Enclosure Colour: Black
Operating Temperature: 0 C to 40 C
Humidity: Operating: 20% to 80%
Sealability: Touchscreen sealed to bezel, Touchscreen sealed to LCD
Mounting Options: 100 x 100mm VESA mount on rear of unit
Monitor Dimensions (Zero Bezel): 420.1(W) x 348.1(H) x 40.7(D)mm
Monitor Dimensions (Bezel): 414.7(W) x 342.7(H) x 50(D)mm
Weight: 4.6kg
