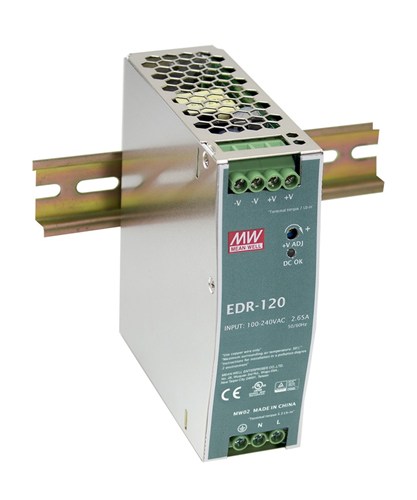

Mean Well EDR Din Rail Power Supplies are an economical and slim solution which adapt to be installed on TS-35/7.5 or 15 mounting rails. They are 40mm wide which allows plenty of space to be saved in cabinets. They are designed with metal housing that enhances the unit s power dissipation. It is equipped with constant current mode for over-load protection fitting various inductive or capacitive applications.

Features:

Universal AC input / Full range

Cooling by free air convection

Installable on DIN rail TS-35/7.5 or 15

100% full load burn-in test

Low cost

3 year warranty

Specifications:

Model Number: EDR-120-12

Output Voltage: 12VDC

Output Current: 10A

Ripple & Noise: 100mV

Efficiency: 85%

Input Voltage: 90~264VAC, 127~370VDC

Frequency Range: 47~63Hz

In Rush Current: 35A @ 230VAC

DIN Rail Compatibility: TS-35/7.5 or 15 mountable

Dimensions: 125.2(L) x 40(W) x 113.5(D)mm
