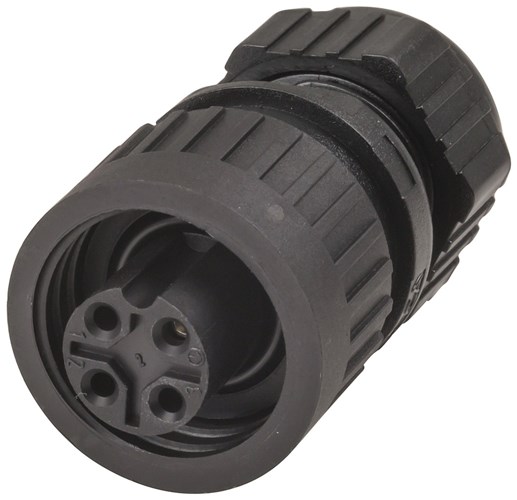

3 Pole and Pre-earth CA Series Line Socket

Code: ELE/PS1007
Stock Status:
Delivery (2-5 Days)
  • Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating part...

    PS1007

    Hirschmann C16-1 Series or similar connectors offer 4 or 7 way (3 and 6 with plus a P.E. - or pre-engaging - earth contact). The mating parts securely screw together to form environmental protection to IP-67. For further technical information see specifications. A quality industry-standard connector.

    Features:
    Insulation resistance: 10^8ohm
    Contact Resistance: 5mohm
    Contact Material: Silver
    Contact Screw: Solder
    Wire Conductor (max): 2.5mm
    Temperature range: -40 C to + 100 C
    Protection: IP67 to IEC60529/DIN40050
    Housing: Polyamide 6.6
    Strain Relief: Screw clamp/Ring & Gland Nut (9mm)

$22.19

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
