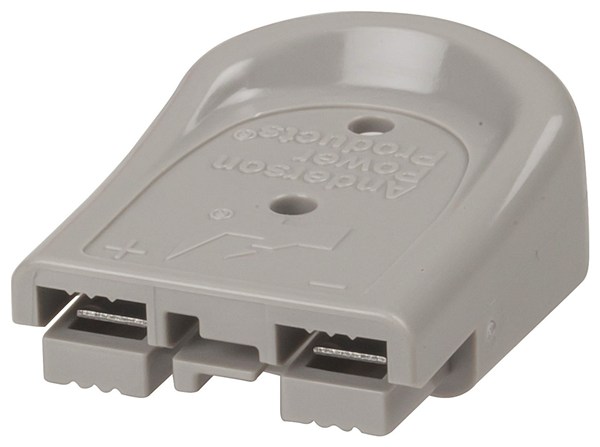

Anderson 35A SBS Mini Connector - Grey
Code: ELE/PT4484
- Compact high-current polycarbonate connectors to meet multiple needs.
PT4484
1 Year Warranty
These compact mini connectors can handle up to 600 volts continuous in AC or DC with current of 35A. The mechanical and colour coded keys protect against accidental cross mating of connectors.
These connectors also feature genderless housing that mates with itself for ease of assembly in the factory or the field. The touchsafe housing prevents accidental exposure to live circuits and these also have the ability to disconnect under load.
Supplied as a moduled 2 pole with contacts.
Specifications:
Housing Colour: Grey
Contact Rating: 35A
Contact Wire Size: 10 AWG
Voltage Rating: 600 (AC or DC)
Max Wire Diameter: 4.0mm2
Operating Tempreature: -20C to 105C
