TL4640

Unlike filament (FDM) type 3D printers, this resin printer uses UV light that passes through its 7K high resolution LCD screen to cure the resin layer by layer where it is needed. Compared to FDM this method produces a more detailed and smooth print with less visible print layers.

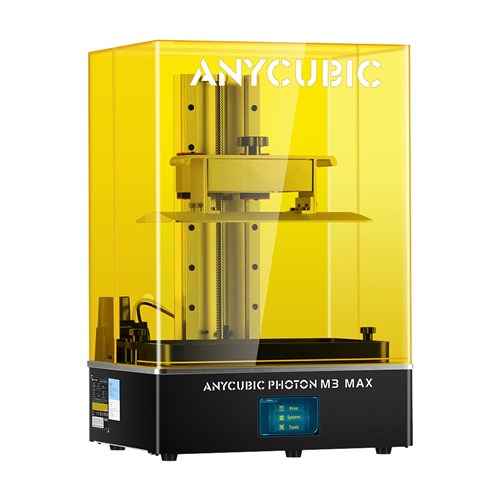

The Photon M3 Max is equipped with a large 7K resolution 13.6 inch monochrome LCD to produce detailed models up to 300mm high x 298mm wide x 164mm deep. The 6480 x 3600px resolution LCD provides a high 450:1 contrast ratio for 3D models in vivid detail with sharp edges and corners. A powerful light matrix using 84 bright LEDs provides over 90% light uniformity and 27K lux power density to each layer, which makes fast printing up to 60mm per hour possible. The brightness can be adjusted between 30-100% if necessary to help support specialty resins, and a dedicated and replaceable anti-scratch film above the screen itself makes the screen much more durable than rival printers.

To operate the printer, simply use the Anycubic slicer software to prepare and save the model to the supplied USB thumb drive, which you insert into the USB port on the printer. Use the 4.3 inch touchscreen to operate and monitor your printer s progress.

Other features include an auto resin filler and UV-blocking top cover.

Resin in multiple colours is sold separately.

Features
13.6 inch 7K monochrome LCD
Dedicated and replaceable screen protector
Fast printing speed
High quality dual rail Z-axis

Specifications
Operation: 4.3 inch touch screen
Software: Anycubic Photon workshop
Connectivity: USB
Technology: LCD-based SLA
Exposure Screen: 13.6 inch monochrome
Light-source: Parallel matrix 84 x LEDs
XY Reolution: 6480 x 3600px (7K)
Z Axis Resolution: 0.01mm
Layer Resolution: 0.01-0.15mm
Horizontal Resolution: 46 m
Contrast Ratio: 450:1
Printing Speed: Maximum 60mm/hr
Rated Power: 120W
Build Volume: 300(H) x 298(W) x 164(D)mm
Material: 405nm UV Resin
