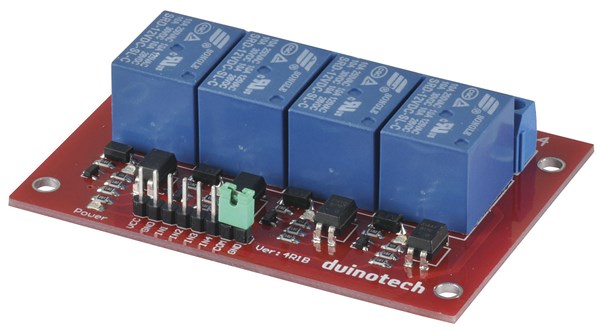

Arduino Compatible 4 Channel 12V Relay Module
Code: ELE/XC4440
- These handy relay modules provide the easiest way to use your Duinotech development board to control switching of real world devices.
XC4440
Arduino Compatible
Available in one, four and eight channel versions, these modules can switch up to 10A per channel. Includes back-EMF (ElecroMagnetic Frequency) protection and LEDs so you can easily see the state of the outputs. The four and eight channel versions even have optical isolation to protect your main board. The one channel version operates directly from 5V.
Features:
Status LEDs show channel status
Active High logic
Screw terminals for easy connection to relay contact.
SPDT Relays
Current Ratings:
10A @ 250VAC
10A @ 30VDC
Four mounting holes on each module
| Cat No. | Channels | Supply Voltage | Optical Isolation | Dimensions |
| XC4419 | 1 | 5VDC | NO | 40(W) x 27(D) x 18(H)mm |
| XC4440 | 4 | 12VDC | YES | 77(W) x 55(D) x 17(H)mm |
| XC4418 | 8 | 12VDC | YES | 135(W) x 50(D) x 19(H)mm |
