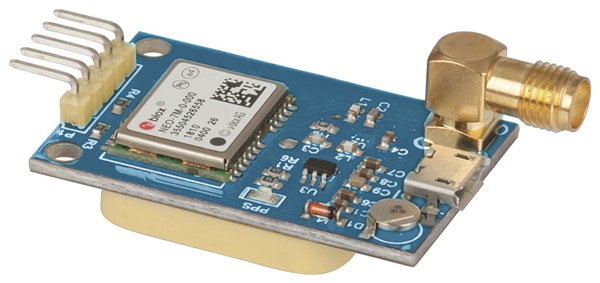

Arduino Compatible GPS Receiver Module
Code: 8008980
- Add GPS positioning down to 2.5m accuracy to your next Arduino project using this compact GPS module with on-board antenna. Based on the NEO-7M, supports NMEA standard protocol output and features built-in flash to save settings after power-off.
XC3710
Arduino? Compatible
This module has an on-board ceramic antenna meaning you don t need an external one, however, an SMA connector is also attached if you wish to attach your own antenna to improve reception. The micro USB interface enables you to debug the GPS module via a data cable, and a reserved serial port interface for USB-to-serial port modules or external MCU enables you to easily receive the GPS data.
Features:
- On-board signal LED indicator
- 3.3V or 5V operation
- Onboard & external antenna options
- 9600 Baud Rate
- 1Hz Output Frequency
- Uses TinyGPS++ Library
Note: When connecting an external antenna the C2 capacitor on the module needs to be removed. If the internal and external antennas are used together they will interfere with each other, affecting positioning.
The on-board battery needs to be charged for around about an hour before usage.
