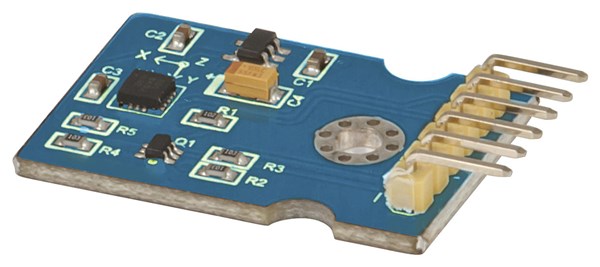

Arduino Compatible Tri-Axis Digital Tilt Sensor
Code: 8008978
- This miniscule breakout board is perfect for any project that needs to sense orientation or motion. Also known as an accelerometer, it has a 6 pin header so interfacing with your build is easy. It can be used for gesture controlled interfacing and more.
XC3732
Raspberry Pi Compatible
Arduino Compatible
Use this high performance acceleration sensor module in your project to detect direction (transverse/longitudinal), as well as free fall, pulse, and shake detection. The on-board MMA8452Q is a smart low-power, three-axis, capacitive micromachine acceleration sensor with 12-bit resolution. Users are able to set a range of 2g, 4g, or 8g, which can output high-pass filtering data and non-filtered data in real-time. An embedded function can also be used to generate an inertial wake-up interrupt signal, which enables MMA8452Q to maintain a low-power mode in the static state while monitoring the event.
Features:
- 12 bit and 8 bit digital outputs
- I2C digital output interface (up to 2.25MHz with 4.7k pull-up resistor)
- Two programmable interruption pins applied to six interruption sources
- Three motion detection embedded channels: free fall detection, pulse detection, shaking detection
- Direction (transverse/longitudinal) detection with setting lag compensation
- Automatic arousal and auto-dormant ODR can be automatically altered
- High-pass filtering data can be exported in real time
Specifications:- Interface Voltage: 1.6V to 3.6V
- Optional Dynamic Range: 2g/ 4g/ 8g
- Output Data Rate (ODR) Range: 1.56Hz to 800Hz
- Noise: 99 g/ Hz
