CP 1000VA/900W TOWER UPS
Code: 8217904

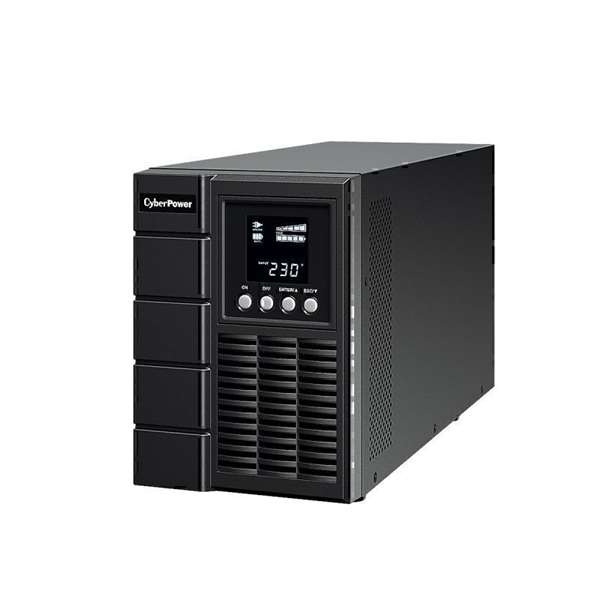

The CyberPower OLS1000E is a high-performance uninterruptible power supply (UPS) utilizing online double-conversion topology to deliver continuous Pure Sine Wave power for essential applications such as network-attached storage (NAS), servers, digital video recorders (DVRs), surveillance systems, transportation, and emergency systems.
Specifications:
- Phase: Single Phase
- Form Factor: Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 95%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage (Vac): 230 ± 10%
- Input Voltage Range (Vac): 160 - 300
- Adjustable Voltage Range (Vac): 0-50% Load for 110 - 300 Vac - 0-60% Load for 120 - 300 Vac
- 0-80% Load for 140 - 300 Vac
- 0-100% Load for 160 - 300 Vac
- Input Frequency (Hz): 50 ± 10
- 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 4.5
- Input Power Factor: 0.98
- Input Connector Type: IEC C14
- Power Cord Length (m): 1.8
- Output Capacity (Watts): 900
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 208 ± 1%
- 220 ± 1%
- 230 ± 1%
- 240 ± 1%
- Output Voltage Setting: Configurable
- On Battery Frequency (Hz): 50 ± 0.5%
- 60 ± 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ± 15%
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
- Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
- Overload Protection (Bypass Mode): >130% Load Immediately
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ? 3%
- Harmonic Distortion (Non-linear Load): THD ? 5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Outlet(s) - Total: 4
- Outlet Type: IEC C13 x 4
- Outlet(s) - Battery & Surge Protected: 4
- Typical Transfer Time (ms): 0
- Runtime at Half Load (min): 15
- Runtime at Full Load (min): 5
- Typical Recharge Time (Hours): 5
- Maximum Charging Current (A): 1
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: No
- Battery Type: Sealed Lead-acid
- Compatible Extended Battery Module (EBM): BPSE36V45A
- Max. EBM Quantity (pcs): 3
- Surge Suppression (Joules): 440
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable (pcs): Power Cord x2, USB Cable x1, Phone Line x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 151 x 225 x 394mm
- Weight: 13.1kg
- Certifications: CE, RCM
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
