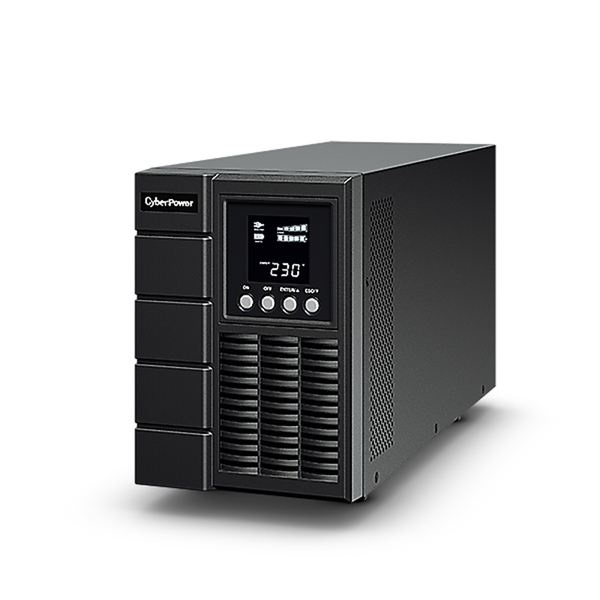

CP 1500VA/1350W TOWER UPS
Code: 8217907
- CP 1500VA/1350W Tower UPS
Specifications:
- Phase: Single Phase
- Form Factor: Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 95%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage: 230 ± 10%
- Input Voltage Range: 160 - 300 Vac
- Adjustable Voltage Range: 0-50% Load for 110 - 300 Vac - 0-60% Load for 120 - 300 Vac
- 0-80% Load for 140 - 300 Vac
- 0-100% Load for 160 - 300 Vac
- Input Frequency: 50 ± 10 Hz - 60 ± 10 Hz
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 6.5 A
- Input Power Factor: 0.98
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: AU x 1
- Power Cord Length: 1.8m
- Capacity: 1500 VA / 1350 Watts
- On Battery Waveform: Pure Sine Wave
- On Battery Frequency: 50 ± 0.5% Hz - 60 ± 0.5% Hz
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ± 15%
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
- Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
- Overload Protection (Bypass Mode): >130% Load Immediately
- Harmonic Distortion (Linear Load): THD ? 3%
- Harmonic Distortion (Non-linear Load): THD ? 5%
- Total Outlets: 4
- Outlet Type: IEC C13 x 4
- Battery & Surge Protected Outlets: 4
- Typical Transfer Time: 0 ms
- Runtime at Half Load: 14 min
- Runtime at Full Load: 4 min
- Typical Recharge Time: 5 hours
- Maximum Charging Current: 1 A
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: No
- Compatible Extended Battery Module (EBM): BPSE36V45A
- Max. EBM Quantity: 3
- Surge Suppression: 440 Joules
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
- HID Compliant USB Port: 1
- Emergency Power Off (EPO) Port: Yes
- Management Cable: Power Cord x2, USB Cable x1, Phone Line x1
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 151 x 225 x 394mm
- Weight: 15.3kg
- Online Thermal Dissipation: 420 BTU/hr
- Audible Noise at 1.5M: 45 dBA
- Certifications: CE / RCM / RoHS
- Warranty: 2 Years
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
What's in the Box:
- 1 x OLS1500E UPS
- 1 x Power Cord
- 1 x USB Cable
- 1 x Phone Line
- 1 x User Manual
