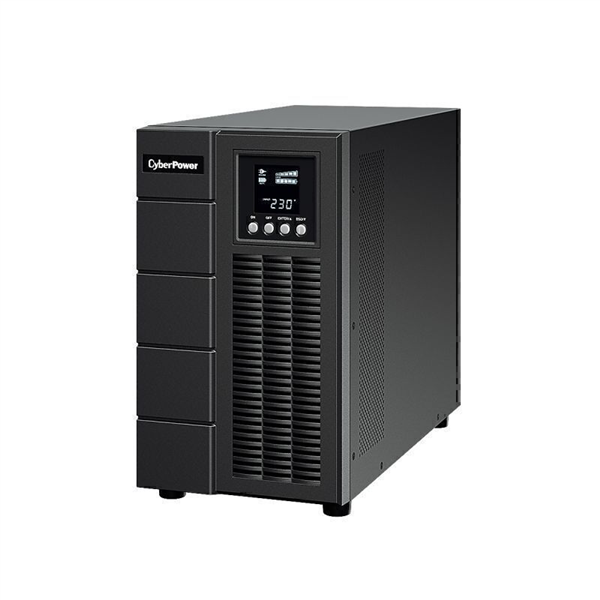

CP 3000VA/2700W TOWER UPS
Code: 8217910
- The CyberPower OLS3000E is a high-performance uninterruptible power supply (UPS) employing online double-conversion technology to provide continuous Pure Sine Wave power, suitable for critical applications such as NAS, servers, DVRs, surveillance, transportation, and emergency systems.
Specifications:
- Phase: Single Phase
- Form Factor: Tower
- Efficiency: 95%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage: 230 Vac ±10%
- Input Voltage Range: 190 - 300 Vac
- Adjustable Voltage Range:
- 0-50% Load for 110 - 300 Vac
- 0-60% Load for 140 - 300 Vac
- 0-80% Load for 160 - 300 Vac
- 0-100% Load for 190 - 300 Vac
- Input Frequency: 50/60 Hz ±10%
- Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
- Overload Protection (Bypass Mode): >130% Load Immediately
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ?3%
- Harmonic Distortion (Non-linear Load): THD ?5%
- Internal Bypass: Automatic and Manual
- Total Outlets: 6
- Outlet Types: IEC C19 x 1, Hardwire Terminal Block x 1, IEC C13 x 4
- Battery & Surge Protected Outlets: 5
- Typical Transfer Time: 0 ms
- Runtime at Half Load: 14 minutes
- Runtime at Full Load: 4 minutes
- Recharge Time: 5 hours
- Maximum Charging Current: 1 A
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable Battery: No
- Battery Type: Sealed Lead-acid
- Compatible Extended Battery Module (EBM): BPSE72V45A
- Max. EBM Quantity: 3
- Surge Suppression: 440 Joules
- EMI/RFI Filtration: Yes
- Phone/Network Protection: RJ11/RJ45 (Combo) 1-in, 1-out
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
- HID Compliant USB Port: 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable: Power Cord x2, USB Cable x1, Phone Line x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 196 x 337 x 416 mm
- Weight: 28.2 kg
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- PowerPanel Management Software
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
