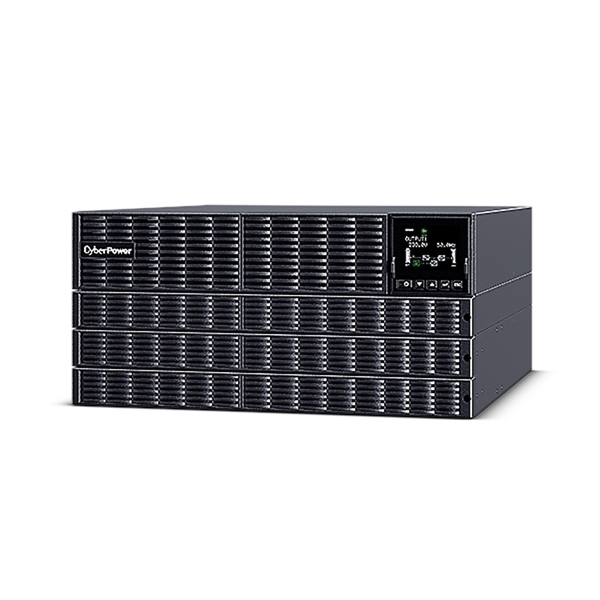

CP 6000VA/6000W RACK TOWER UPS
Code: 8217914
- CP 6000VA/6000W Rack Tower UPS
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount / Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 98%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage: 230 Vac
- Input Voltage Range: 110 - 300 Vac
- Adjustable Voltage Range: 0-50% Load for 110 - 144 Vac - 0-75% Load for 145 - 179 Vac
- 0-100% Load for 180 - 300 Vac
- Input Frequency: 50 - 60 Hz
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 30 A
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Capacity: 6000 VA / 6000 Watts
- On Battery Waveform: Pure Sine Wave
- On Battery Frequency: 50 ± 0.5% Hz - 60 ± 0.5% Hz
- ECO Mode Voltage Tolerance: ± 10%
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec, >130% Load for 1.5 sec
- Overload Protection (Bypass Mode): 110-120% Load for 30 min, 120-130% Load for 2 min, 130-150% Load for 15 sec, >150% Load Immediately
- Harmonic Distortion (Linear Load): THD ? 1.5%
- Harmonic Distortion (Non-linear Load): THD ? 2%
- Internal Bypass: Automatic / Manual
- Maintenance Bypass: Yes
- Total Outlets: 9
- Outlet Type: Hardwire Terminal Block x 1 - IEC C13 x 4
- IEC C19 x 4
- Typical Transfer Time: 0 ms
- Runtime at Half Load: 17.7 min
- Runtime at Full Load: 5.6 min
- Typical Recharge Time: 4 hours
- Maximum Charging Current: 4 A
- Adjustable Charging Current: 1 - 4 A
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Compatible Extended Battery Module (EBM): BPS240V7ART3U
- Extended Battery Module Auto-detection: Yes
- Max. EBM Quantity: 10 pcs
- Surge Suppression: 1335 Joules
- EMI/RFI Filtration: Yes
- Tiltable LCD Panel: 15 Degrees
- HID Compliant USB Port: 1
- Serial Port: RS232
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Remote Cloud Card: Yes - Built-in Remote Cloud Card by Ethernet included
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 213.5 x 661 mm
- Weight: 75 kg
- Installed Rack Height: 5 U
- Online Thermal Dissipation: 1777 BTU/hr
- Audible Noise at 1.0M: 62 dBA
- Certifications: CE / RoHS
Features:
- Online (Double Conversion) UPS Topology
- High Output Power Factor
- Overload Protection
- Maintenance Bypass Switch
- Extended Battery Module Auto-detection
- User-replaceable Batteries
- Tiltable LCD Panel
- Relay-type Dry Contact
- SNMP/HTTP Remote Management Capability (Optional)
- Rack/Tower Convertible Configurations
- ECO Mode
- Pure Sine Wave Output
- Zero Transfer Time
- Extended Battery Module (EBM)
- Adjustable Charging Current
- Color LCD Panel
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- Built-in Remote Cloud Card by Ethernet
What's in the Box?
- 1 x OLS6KERT5U UPS
- 1 x External Maintenance Bypass PDU
- 1 x Rackmount Rail
- 1 x Rackmount Ears
- 1 x Rail Kit
- 1 x Screw Kit
- 1 x Power Cord
- 1 x USB Cable
- 1 x Phone Line
- 1 x User Manual
