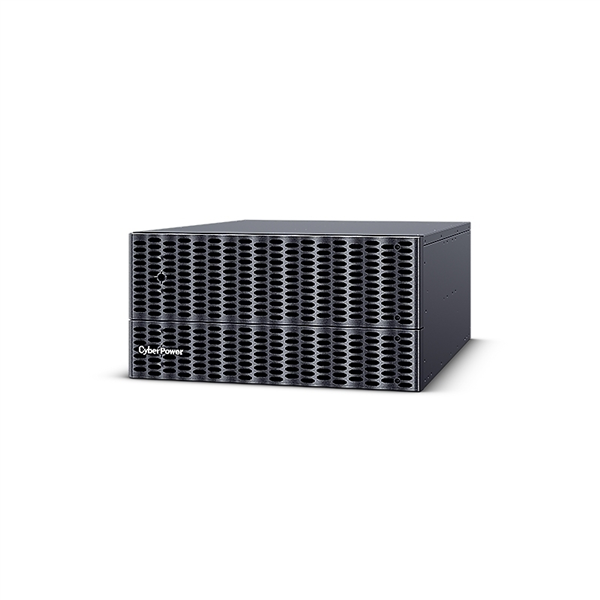

CP BATTERY PACK FOR OL3T UPS
Code: 8217726
CP Battery Pack for OL3T UPS
Specifications:
- Nominal Output Voltage: 480 Vdc
- Rated Output Current: 55 A
- Battery Type: Sealed Lead-acid
- Battery Quantity: 40 pcs
- Single Battery Voltage: 12 V
- Single Battery Capacity: 9 AH
- Built-in Charger: No
- User-replaceable: Yes
- Hot-swappable: Yes
- Expansion Ready: Yes
- Parallel Expansion (Max. Units): 10
- Replacement Battery Pack Quantity: 4 pcs
- Form Factor: Rackmount, Tower
- Enclosure Construction: Metal
- Color: Black
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 219 x 730 mm
- Weight: 135.8 kg
- Installed Rack Height: 5 U
- Additional Dimensions: 590 x 376 x 890 mm
- Additional Weight: 150 kg
- Operating Temperature: 0 to 40°C
- Operating Relative Humidity: 0 to 95% (Non-condensing)
- Operating Elevation: 0 to 3,000 meters
- Storage Temperature: -15 to 45°C
- Storage Relative Humidity: 0 to 95% (Non-condensing)
- Storage Elevation: 0 to 15,000 meters
Features:
- Certifications: CE, BSMI, IEC62040-1, IEC62040-2, CNS 14757-2, CNS 14843-1
- RoHS Compliant: Yes
