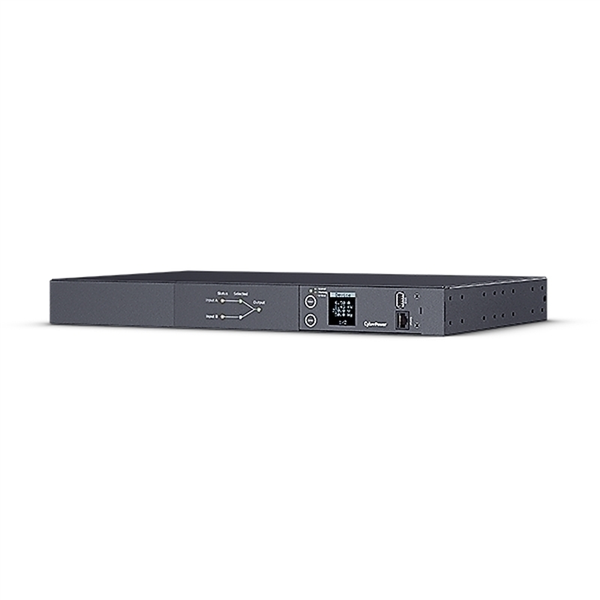

CP METERED ATS 10AMP
Code: 8217922
- CP Metered ATS 10amp
Specifications:
- Phase: Single Phase
- Dual Power Inputs: Yes
- Nominal Input Voltage: 200 - 240 Vac
- Input Frequency: 50 / 60 Hz
- Maximum Input Current: 12 A (UL) - 10 A (CE)
- Overload Protection: Circuit Breaker
- Input Connector Type: IEC C14 x 2
- Power Cord Length: 3.05m
- Output Voltage: Depends on Input
- Number of Banks: 1
- Total Outlets: 12
- Rear Outlets: 12
- Outlet Type: IEC C13 x 12
- LCD Information Display: Input Voltage, Input Frequency, Current Level, Power Consumption, Serial Number, Hardware Version, Firmware Version
- Hot-swappable LCD Module: Yes
- LCD Setting & Control: Preferred Source, Source Configuration, Load Configuration, LCD Settings, Reset / Reboot
- LED Indicators: PDU Status, Source Status, Load
- Connectivity Port: RJ45 (for Serial)
- User-upgradeable Firmware: Yes
- Installed Rack Height: 1U
- Form Factor: 1U Horizontal Rackmount
- Enclosure Construction: Steel
- Cord Retention Tray: Yes
- IEC Receptacle Locking: Yes
- External Site Ground Pin: Yes
- Adjustable Mounting Brackets: 1 Set
- Dimensions: 433 x 44 x 215mm
- Weight: 3.5kg
- Certifications: CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368, RoHS
Features:
- Real-time Local Monitoring
- Quick Transfer Time (< 10 ms)
- Digital Real-time Load Display
- Hot-swappable LCD Design
- Firmware Upgrade via USB
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Dual Inputs
- Industrial-grade Metal Housing
- User Configurable Color LCD
- LED Status Indicator
- User-upgradeable Firmware
- Cord Retention Tray
What's in the Box:
- 1 x PDU24004
- 1 x User Manual
- 1 x Cord Retention Tray
- 1 x Mounting Brackets
- 1 x Cable Ties
- 1 x Screw Kit
- 1 x Power Cord
- 1 x Serial Cable
