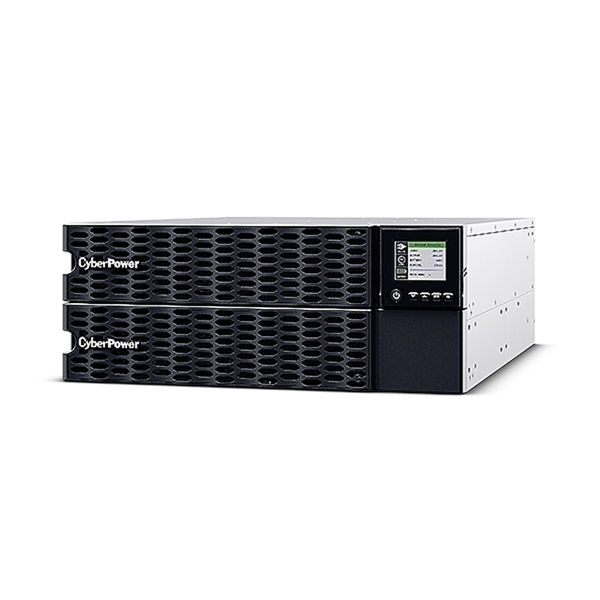

CP OL10000VA RACK TOWER UPS
Code: 8217896
CP OL10000VA Rack Tower UPS
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount / Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 98%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Input Voltage Range: 200 - 240V
- Input Frequency: 50 ± 10 - 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 54A
- Input Connector Type: Hardwire Terminal Block
- Output Capacity: 10000 VA / 10000 Watts
- On Battery Waveform: Pure Sine Wave
- Overload Protection: Internal Current Limiting / Circuit Breaker
- Overload Protection (Line Mode): 105-125% Load for 1 min / 125-150% Load for 10 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec / 130-150% Load for 2 sec
- Overload Protection (Bypass Mode): Circuit Breaker
- Crest Factor: 3:1
- Number of Outlets: 11
- Battery Runtime at Half Load: 8.3 Minutes
- Battery Runtime at Full Load: 2.4 Minutes
- Typical Recharge Time: 4 Hours
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- Built-in Battery Management Module: Yes
- User-replaceable: Yes - Qualified Personnel Only
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Replacement Battery Pack (RBP): RBP0159
- Battery Voltage: 192V
- Compatible Extended Battery Module (EBM): BPE192VL2U01 (Built-in Charger)
- Surge Suppression: 2430 Joules
- Serial Port: Combo (RS232 + Dry Contact)
- SNMP/HTTP Remote Monitoring: Yes - RMCARD205 included
- Dimensions: 433 x 173 x 720 mm
- Weight: 71.2 kg
- Certifications: CE / EAC / RCM
- RoHS Compliant: Yes
Features:
- Online (Double Conversion) UPS Topology
- High Density Design
- High Output Power Factor
- Tiltable LCD Panel
- Surge and Spike Protection
- Controllable Outlet Groups
- Battery Management Technology
- Extended Battery Module (EBM)
- Emergency Power Off (EPO) Port
- PowerPanel Management Software
- ECO Mode
- Color LCD Panel
- Quick Charging Technology
- Automatically Rotatable LCD
- Critical/Non-critical Load Outlets
- Generator Compatible
- Hot-swappable Batteries
- Smart Battery Management
- SNMP/HTTP Remote Management Capability
Please note: Prices are shown including GST (where applicable) and are in AUD$
