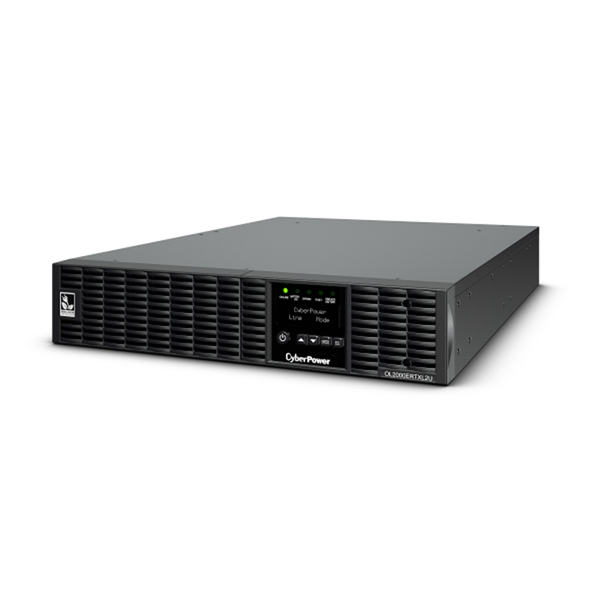

CP OL2000VA RACK TOWER UPS
Code: 8217898
- The CyberPower OL2000ERTXL2U offers dependable power backup for IT equipment, servers, workstations, NAS/storage devices, telecom, networking, security/emergency, and surveillance systems.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 96%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Input Voltage Range (Vac): 190 - 300
- Adjustable Voltage Range (Vac): 0-60% Load for 120 - 139 Vac - 0-70% Load for 140 - 159 Vac
- 0-80% Load for 160 - 179 Vac
- 0-90% Load for 180 - 189 Vac
- 0-100% Load for 190 - 300 Vac
- Input Frequency (Hz): 50 ± 10 - 60 ± 10
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 10
- Input Power Factor: 0.99
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: IEC C14 x 1
- Power Cord Length (m): 3
- Output Capacity (Watts): 1800
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 200 ± 2% - 208 ± 2%
- 220 ± 2%
- 230 ± 2%
- 240 ± 2%
- Output Voltage Setting: Configurable
- On Battery Frequency (Hz): 50 ± 0.5% - 60 ± 0.5%
- Output Frequency Setting: Configurable
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ± 10% - ± 15%
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Overload Protection (Line Mode): 105-125% Load for 1 min, 125-150% Load for 10 sec
- Overload Protection (Battery Mode): 105-130% Load for 10 sec, 130-150% Load for 2 sec
- Overload Protection (Bypass Mode): Circuit Breaker
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ? 3%
- Harmonic Distortion (Non-linear Load): THD ? 5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Outlet(s) - Total: 9
- Outlet Type: IEC C13 x 8 - IEC C19 x 1
- Outlet(s) - Battery & Surge Protected: 9
- Outlet(s) - Critical Load (CL): 5
- Outlet(s) - Non-Critical Load (NCL): 4
- Typical Transfer Time (ms): 0
- Runtime at Half Load (min): 20
- Runtime at Full Load (min): 6.5
- Typical Recharge Time (Hours): 5
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Battery Cartridge: RBP0076
- RBP Quantity (pcs): 1
- Battery Quantity (Each RBP) (pcs): 6
- Battery Voltage (Each RBP) (V): 72
- Compatible Extended Battery Module (EBM): BPE72V60ART2US
- Max. EBM Quantity (pcs): 10
- Surge Suppression (Joules): 1335
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting, Language
- LED Indicators: Power On, Line Mode, Battery Mode, Bypass Mode, Battery Capacity, Low Battery, Overload, UPS Fault, Wiring Fault, Replace Battery
- HID Compliant USB Port(s): 1
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable (pcs): Power Cord x1, USB Cable x1, Serial Cable x1, Phone Line x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 88 x 600mm
- Weight: 31kg
- Certifications: CE, BSMI, C-Tick
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Critical/Non-critical Load Outlets
- Smart Battery Management (SBM)
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- ECO Mode
- Overload Protection
- Zero Transfer Time
- Hot-swappable Batteries
- Surge and Spike Protection
- Phone/Fax/Modem/DSL/Network Protection
- Detachable LCD Panel
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
