CP OLS RACK/TOWER 3000VA/2700W
Code: 8217911

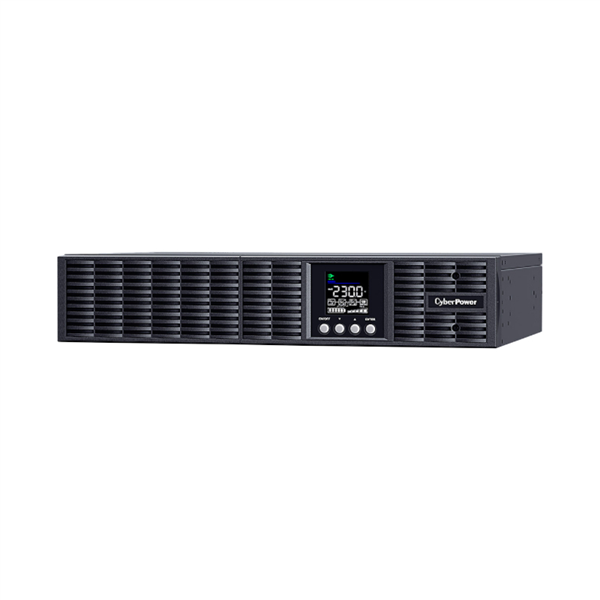

- CyberPower Systems Online S (A) 3000VA/2700W Rack UPS provides reliable power protection with a 12V/9AHx6 battery setup, featuring 8x IEC C13 and 1x IEC C19 outlets. It includes USB, Serial Port, and an optional SNMP Slot (RMCARD205). The unit is backed by a 2-year advanced replacement warranty and includes a rail kit for installation.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 95%
- Active PFC Compatibility: Yes
- Generator Compatibility: Yes
- Nominal Input Voltage: 230 Vac ±10%
- Input Voltage Range: 190 - 300 Vac
- Adjustable Voltage Range: 0-30% Load for 80 - 300 Vac, 0-60% Load for 140 - 300 Vac, 0-80% Load for 160 - 300 Vac, 0-100% Load for 190 - 300 Vac
- Input Frequency: 50/60 Hz ±10
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 13 A
- Input Power Factor: 0.99
- Input Connector Type: IEC C20
- Power Cord Length: 1.5 m
- Output Capacity: 2700 Watts
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s): 208, 220, 230, 240 Vac ±1%
- Output Voltage Setting: Configurable
- On Battery Frequency: 50/60 Hz ±0.5%
- Output Frequency Setting: Configurable
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ±15%
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 110-120% Load for 1 min, >120% Load Immediately
- Overload Protection (Battery Mode): 110-120% Load for 10 sec, >120% Load Immediately
- Overload Protection (Bypass Mode): >130% Load Immediately
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ?3%
- Harmonic Distortion (Non-linear Load): THD ?5%
- Internal Bypass: Automatic Bypass, Manual Bypass
- Total Outlets: 9
- Outlet Type: IEC C19 x 1, IEC C13 x 8
- Battery & Surge Protected Outlets: 9
- Critical Load Outlets: 5
- Non-Critical Load Outlets: 4
- Typical Transfer Time: 0 ms
- Runtime at Half Load: 13.8 min
- Runtime at Full Load: 4.3 min
- Typical Recharge Time: 4 hours
- Maximum Charging Current: 1.5 A
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: Yes, Qualified Personnel Only
- Battery Type: Sealed Lead-acid
- Battery Cartridge: RBP0158
- RBP Quantity: 1
- Battery Quantity (Each RBP): 6
- Battery Voltage (Each RBP): 72 V
- Compatible Extended Battery Module (EBM): BPSE72V40ART2U
- Extended Battery Module Auto-detection: Yes
- Max. EBM Quantity: 3
- Surge Suppression: 388 Joules
- EMI/RFI Filtration: Yes
- Phone/Network Protection RJ11/RJ45 (Combo): 1-in, 1-out
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting
- HID Compliant USB Port(s): 1
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault, Replace Battery
- Management Cable: Power Cord x2, USB Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 438 x 88 x 610 mm
- Weight: 26.7 kg
- Certifications: CE, RCM
Features:
- Online (Double Conversion) UPS Topology
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module Auto-detection
- Critical/Non-critical Load Outlets
- Phone/Fax/Modem/DSL/Network Protection
- Variable Speed Fans
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO Mode
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- EMI and RFI Filtration
- Color LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
