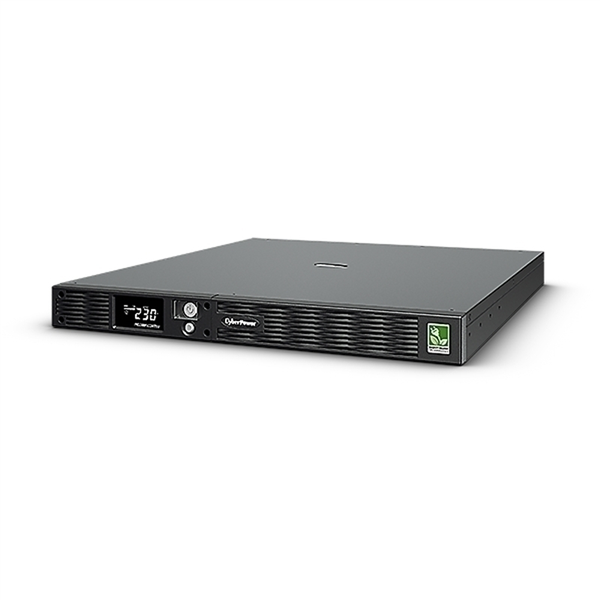

CP PRO 1000VA RACK UPS
Code: 8217933
CP Pro 1000VA Rack UPS
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount - Tower
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Active PFC Compatibility: Yes
- Nominal Input Voltage (Vac): 220 ± 5%
- 230 ± 5%
- 240 ± 5%
- Input Voltage Range (Vac): 160 - 286
- Adjustable Voltage Range (Vac): 150 - 300 Vac
- Input Frequency (Hz): 50 ± 3
- 60 ± 3
- Input Frequency Detection: Auto-sensing
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: AU x 1
- Power Cord Length: 3m
- Capacity (VA): 1000
- Capacity (Watts): 800
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 220 ± 5%
- 230 ± 5%
- 240 ± 5%
- On Battery Frequency (Hz): 50 ± 1%
- 60 ± 1%
- Power Factor: 0.8
- Automatic Voltage Regulation (AVR): Double Boost
- Single Buck
- Overload Protection: Internal Current Limiting
- Total Outlets: 6
- Outlet Type: IEC C13 x 6
- Battery & Surge Protected Outlets: 6
- Critical Load Outlets: 2
- Non-Critical Load Outlets: 4
- Typical Transfer Time (ms): 4
- Runtime at Half Load (min): 12
- Runtime at Full Load (min): 3.1
- Typical Recharge Time (Hours): 6
- Start On Battery: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Battery Cartridge (RBP): RBP0027
- Battery Cartridge Quantity: 1
- Surge Suppression (Joules): 810
- EMI/RFI Filtration: Yes
- LCD Information Display: Operation Type
- Power Status
- Battery Status
- Load Status
- Fault & Warning
- LCD Setting & Control: Alarm Setting
- Input & Output
- Battery Setting
- LED Indicators: Power On
- HID Compliant USB Port(s): 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode
- Low Battery
- Overload
- Overcharge
- Overheat
- Management Cable: Power Cord x2
- USB Cable x1
- Serial Cable x1
- EPO Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- PowerPanel Cloud Service: Yes - 90 Days Free Trial
- Enclosure Construction: Metal
- Rackmount Ears: Yes
- Dimensions: 430 x 44 x 490mm
- Weight: 18kg
- Installed Rack Height (U): 1
- Online Thermal Dissipation (BTU/hr): 72
- Certifications: CE
- C-Tick
- EAC
- RoHS
- Warranty: 3 Years
Features:
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Surge and Spike Protection
- LCD Status Display
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- EMI and RFI Filtration
- USB Connectivity Port
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
What's in the Box?
- 1 x PR1000ELCDRT1U UPS
- 1 x Rackmount Ears
- 1 x Screw Kit
- 1 x Power Cord
- 1 x USB Cable
- 1 x Serial Cable
- 1 x EPO Cable
- 1 x User Manual
