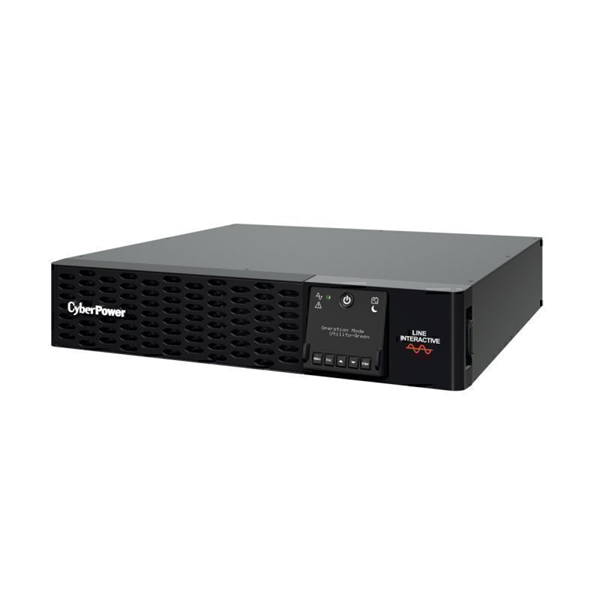

CP PRO RACK/TOWER LCD 1000VA
Code: 8217934
The CyberPower PR1000ERTXL2U offers dependable power backup for home theater systems, multimedia setups, IT equipment, computers, workstations, NAS/storage devices, telecom devices, networking devices, and surveillance systems. This UPS utilizes line-interactive topology.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount, Tower
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Active PFC Compatibility: Yes
- Nominal Input Voltage (Vac): 220 - 230
- 240
- Input Voltage Range (Vac): 159 ~ 288
- Adjustable Voltage Range (Vac): 151 ~ 302
- Input Frequency (Hz): 50 ± 3
- 60 ± 3
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 10
- Input Connector Type: IEC C14
- Power Cord Length (m): 3.05
- Output Capacity (Watts): 1000
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 220 ± 5%
- 230 ± 5%
- 240 ± 5%
- On Battery Frequency (Hz): 50 ± 1%
- 60 ± 1%
- Power Factor: 1
- Automatic Voltage Regulation (AVR): Double Boost, Single Buck
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Outlet(s) - Total: 10
- Outlet Type: IEC C13 x 10
- Outlet(s) - Battery & Surge Protected: 10
- Outlet(s) - Critical Load (CL): 5
- Outlet(s) - Non-Critical Load (NCL): 5
- Typical Transfer Time (ms): 4
- Runtime at Half Load (min): 21.3
- Runtime at Full Load (min): 7.9
- Typical Recharge Time (Hours): 3
- Start On Battery: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Battery Cartridge: RBP0128
- RBP Quantity (pcs): 1
- Battery Quantity (Each RBP) (pcs): 4
- Compatible Extended Battery Module (EBM): BP48VP2U01 (Built-in Charger)
- Max. EBM Quantity (pcs): Unlimited
- Surge Suppression (Joules): 2430
- EMI/RFI Filtration: Yes
- Network Protection RJ45: 1-in, 1-out
- LCD Orientation: Rotatable LCD via Setting
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
- HID Compliant USB Port(s): 1
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
- Management Cable (pcs): Power Cord x2, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- PowerPanel Cloud Service: Yes - 90 Days Free Trial
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 86.5 x 412mm
- Weight: 23.6kg
- Certifications: CE, FCC Class B, UL, RCM, VCCI
Features:
- Line-interactive UPS Topology
- Active PFC Compatible
- Toolless Battery Replacement
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- Surge and Spike Protection
- LCD Status Display
- Serial Connectivity Port
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- Energy Saving Technology
- Pure Sine Wave Output
- High Output Power Factor
- Overload Protection
- Quick Charging Technology
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- USB Connectivity Port
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
