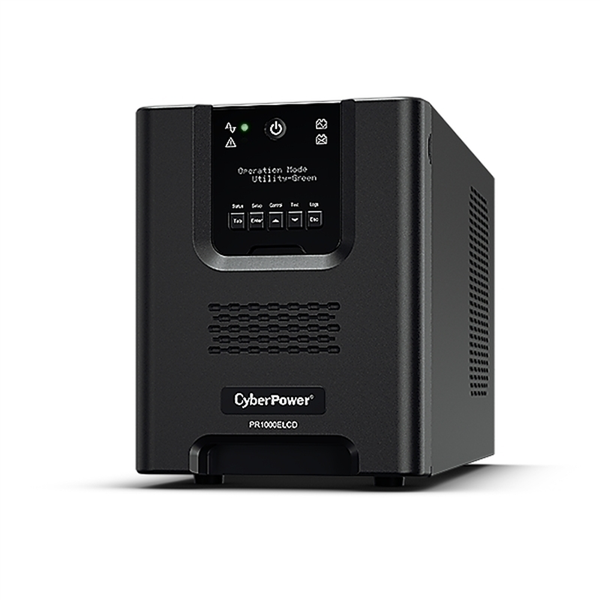

CP SMART APP TOWER 1000VA UPS
Code: 8217932
- CP Smart App Tower 1000VA UPS
Specifications:
- Phase: Single Phase
- Form Factor: Tower
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Energy Star Qualified: Yes
- Active PFC Compatibility: Yes
- Nominal Input Voltage: 230 Vac
- Input Voltage Range: 151 - 301 Vac
- Input Frequency: 50 ± 3 Hz - 60 ± 3 Hz
- Input Frequency Detection: Auto-sensing
- Rated Input Current: 10 A
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: AU x 1 - IEC C14 x 1
- Power Cord Length: 1.83m
- Capacity: 1000 VA / 900 Watts
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage: 230 Vac ± 5%
- On Battery Frequency: 50 ± 1% Hz - 60 ± 1% Hz
- Power Factor: 0.9
- Automatic Voltage Regulation (AVR): Double Boost - Single Buck
- Overload Protection: Internal Current Limiting
- Total Outlets: 8
- Outlet Type: IEC C13 x 8
- Battery & Surge Protected Outlets: 8
- Critical Load Outlets: 4
- Non-Critical Load Outlets: 4
- Typical Transfer Time: 4 ms
- Runtime at Half Load: 16 min
- Runtime at Full Load: 4 min
- Typical Recharge Time: 8 hours
- Quick Recharge Time: 3 hours
- Start On Battery: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Battery Cartridge: RBP0106
- Battery Cartridge Quantity: 1
- Surge Suppression: 405 Joules
- EMI/RFI Filtration: Yes
- LCD Type: Detachable LCD Panel
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Event & Log
- LED Indicators: Power On, Line Mode, Battery Mode, UPS Fault, Replace Battery
- HID Compliant USB Port: 1
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, UPS Fault
- Management Cable: Power Cord x2, USB Cable x1, EPO Cable x1
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- Enclosure Construction: Metal
- Dimensions: 170 x 221 x 432mm
- Weight: 18.9kg
- Online Thermal Dissipation: 102 BTU/hr
- Certifications: CE, EAC, RCM, RoHS
- Warranty: 3 Years
Features:
- Line-interactive UPS Topology
- Active PFC Compatible
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Surge and Spike Protection
- LCD Status Display
- USB Connectivity Port
- PowerPanel Management Software
- Tower Form Factor
- Energy Saving Technology
- Pure Sine Wave Output
- Overload Protection
- Hot-swappable Batteries
- EMI and RFI Filtration
- Detachable LCD Panel
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability (Optional)
What's in the Box:
- 1 x PR1000ELCD UPS
- 1 x Power Cord
- 1 x USB Cable
- 1 x EPO Cable
- 1 x User Manual
