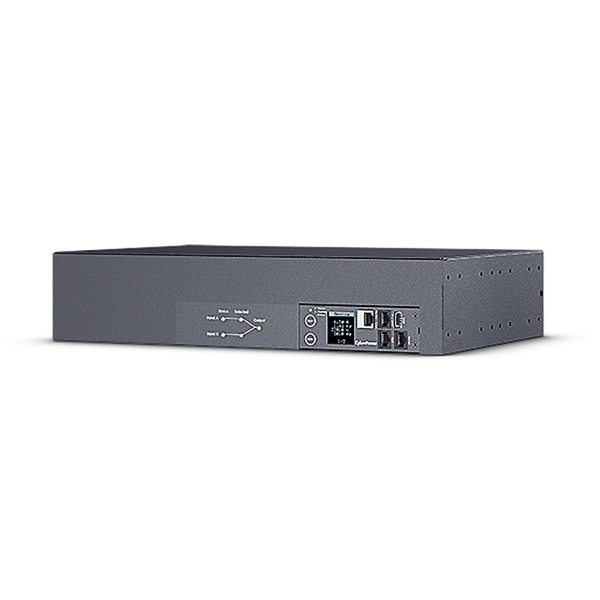

CP SWITCHED ATS 32AMP
Code: 8217929
- CP Switched ATS 32Amp Specifications:
- Phase: Single Phase
- Dual Power Inputs: Yes
- Nominal Input Voltage: 200 - 240 Vac
- Input Frequency: 50/60 Hz
- Maximum Input Current: 32 A
- Input Connector Type: IEC 60309 32A x 2
- Power Cord Length: 3.05 meters
- Output Voltage: Dependent on Input
- Overload Protection: Circuit Breaker
- Over Current Protection (Each Bank): 20 A
- Number of Outlet Banks: 2
- Total Outlets: 18
- Rear Outlets: 18
- Outlet Type: IEC C19 x 2, IEC C13 x 16
- Remote Individual Outlet Control: Yes
- LCD Information Display: Input Voltage, Input Frequency, Current Level, Power Consumption, Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
- Hot-swappable LCD Module: Yes
- LCD Setting & Control: Preferred Source, Source Configuration, Load Configuration, Outlet Control, LCD Settings, Reset/Reboot
- LED Indicators: PDU Status, Source Status, Load, Tx/Rx, Link, Outlet
- A-type USB Port: Yes
- Connectivity Ports: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/Daisy Chain In), RJ45 (for Daisy Chain Out)
- Environmental Sensor Support: Yes
- User-upgradeable Firmware: Yes
- Power Management Software: PowerPanel Business (for small-medium scale management), PowerPanel Enterprise (for large scale management)
- Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
- Authentication: RADIUS, LDAP, LDAPS, Windows AD
- Installed Rack Height: 2U
- Form Factor: 2U Horizontal Rackmount
- Enclosure Construction: Steel
- Cord Retention Tray: Yes
- IEC Receptacle Locking: Yes
- External Site Ground Pin: Yes
- Adjustable Mounting Brackets: 1 Set
- Dimensions: 433 x 88 x 215 mm
- Weight: 7.8 kg
- Certifications: CE, FCC Class A, UL62368, EN 55032 Class A, IEC 62368, RoHS
