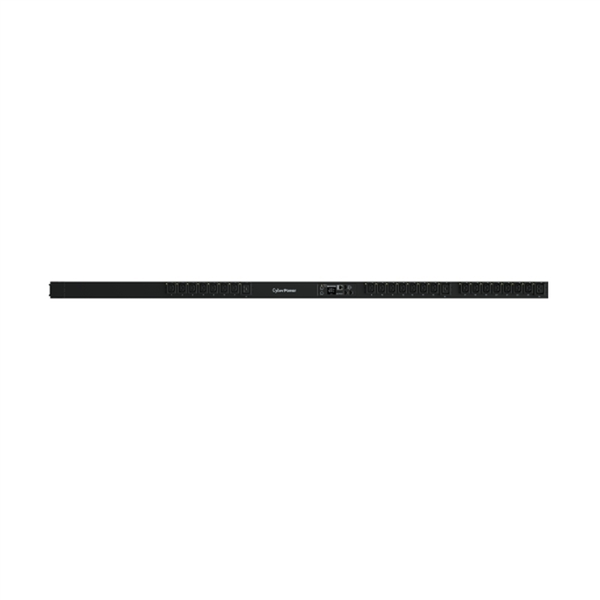

CP SWITCHED EPDU 16AMP
Code: 8217925
- CP Switched ePDU 16Amp
Specifications:
- Phase: Single Phase
- Nominal Input Voltage: 200 - 240 Vac
- Input Frequency: 50/60 Hz
- Maximum Input Current: 16 A (CE)
- Input Connector Type: IEC 60309 16A x 1
- Power Cord Length: 3.05m
- Output Voltage: Dependent on Input
- Idle Power Consumption: < 5 W
- Outlets: 1 Bank, Total 24, Front 24
- Outlet Types: IEC C13 x 21, IEC C19 x 3
- Remote Individual Outlet Control: Yes
- LCD Information Display: Input Voltage, Input Frequency, Current Level, Power Consumption, Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
- Hot-swappable LCD Module: Yes
- Auto LCD Orientation: Yes
- LCD Setting & Control: Outlet Control, LCD Settings, Reset/Reboot
- LED Indicators: PDU Status, Tx/Rx, Link, Outlet
- A-type USB Port: Yes
- Connectivity Port: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/Daisy Chain In), RJ45 (for Daisy Chain Out)
- Environmental Sensor Supported: Yes
- User-upgradeable Firmware: Yes
- Power Management Software: PowerPanel Business (small-medium scale), PowerPanel Enterprise (large scale)
- Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
- Authentication: RADIUS, LDAP, LDAPS, Windows AD
- Enclosure Construction: Steel
- Cord Retention Tray: Yes
- IEC Receptacle Locking: Yes
- Adjustable Mounting Brackets: 1 Set
- Dimensions: 56 x 1665 x 48mm
- Weight: 7.0kg
- Certifications: CE, EN 55032 Class A, RoHS
- Warranty: 2 Years
Features:
- Real-time Local/Remote Monitoring and Switching
- Operates under High Temperature
- Industrial-grade Metal Housing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
- Controllable Receptacles with Power Sequencing
- Ultra Low Power Consumption
- Digital Real-time Load Display
- Hot-swappable LCD Design
- LED Status Indicator
- Supports ENVIROSENSOR
- PowerPanel Management Software
- Cord Retention Tray
What's in the Box:
- 1 x PDU41404
- 1 x User Manual
- 1 x Product Registration Card
- 1 x Cord Retention Tray
- 1 x Mounting Brackets
- 1 x Cable Ties
- 1 x Screw Kit
