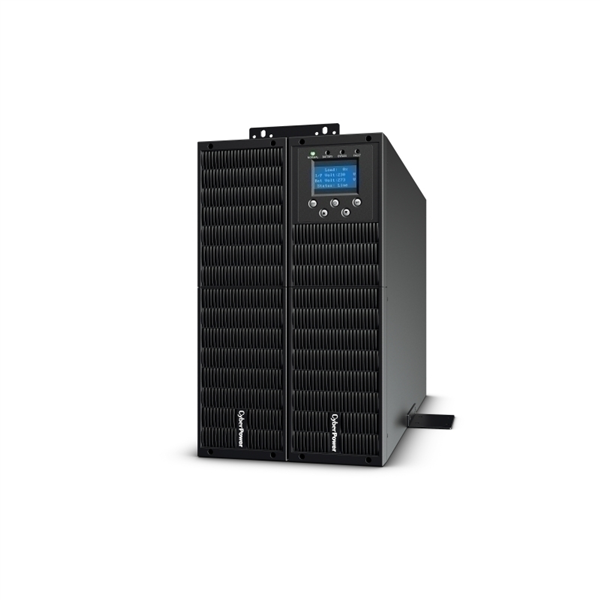

CYBERPOWER ONLINE S 10000VA
Code: 8217903
- CyberPower Systems Online S 10000VA/9000W Rack UPS is equipped with a 12V/7AH*20 battery configuration, a hardwire terminal block, USB and serial ports, and an optional SNMP slot (RMCARD205). It comes with a 2-year advanced replacement warranty and includes a rail kit.
Specifications:
- Phase: Single Phase
- Form Factor: Rackmount Tower
- UPS Topology: Online Double Conversion
- Energy Saving Technology: Online ECO Mode Efficiency > 96%
- Active PFC Compatibility: Yes
- Parallel Expansion (Max. Units): 4
- Generator Compatibility: Yes
- Nominal Input Voltage (Vac): 230
- Input Voltage Range (Vac): 110 - 276
- Adjustable Voltage Range (Vac): 0-80% Load for 110 - 276 Vac - 0-100% Load for 176 - 276 Vac
- Input Frequency (Hz): 50 ± 5 - 60 ± 6
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 45.5
- Input Power Factor: 0.99
- Input Connector Type: Hardwire Terminal Block
- Output Capacity (VA): 10000
- Output Capacity (Watts): 9000
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 208 ± 1% - 220 ± 1%
- 230 ± 1%
- 240 ± 1%
- Output Voltage Setting: Configurable
- On Battery Frequency (Hz): 50 ± 0.1% - 60 ± 0.1%
- Output Frequency Setting: Configurable
- Power Factor: 0.9
- ECO Mode Voltage Tolerance: ± 10%
- Overload Protection: Internal Current Limiting, Circuit Breaker, Fuse
- Overload Protection (Line Mode): 105-125% Load for 10 min, 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
- Overload Protection (Battery Mode): 105-125% Load for 2 min, 125-150% Load for 30 sec, >150% Load for 1 sec
- Overload Protection (Bypass Mode): 125-150% Load for 1 min, 150-170% Load for 10 sec, >170% Load for 1 sec
- Crest Factor: 3:1
- Harmonic Distortion (Linear Load): THD ? 2%
- Harmonic Distortion (Non-linear Load): THD ? 5%
- Internal Bypass: Automatic Bypass - Manual Bypass
- Typical Recharge Time (Hours): 7
- Maximum Charging Current (A): 4
- Start On Battery: Yes
- Smart Battery Management (SBM): Yes
- User-replaceable: No
- Battery Type: Sealed Lead-acid
- Compatible Extended Battery Module (EBM): BPSE240V75ART3UOA
- Max. EBM Quantity (pcs): 15
- Surge Suppression (Joules): 445
- EMI/RFI Filtration: Yes
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Other Information, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Fault & Warning, Communication, Event & Log, Security Setting
- LED Indicators: Line Mode, Battery Mode, Bypass Mode, UPS Fault
- HID Compliant USB Port(s): 1
- Dry Contact (with Relay): Optional
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
- SNMP/HTTP Remote Monitoring: Yes - with optional RMCARD205
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Installed Rack Height (U): 6
- Certification: CE
- RoHS: Yes
- Product Warranty: 2 Years
Features:
- Online (Double Conversion) UPS Topology
- UPS Parallel Expansion
- Overload Protection
- Smart Battery Management (SBM)
- Surge and Spike Protection
- LCD Status Display
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- ECO Mode
- Generator Compatible
- Zero Transfer Time
- Extended Battery Module (EBM)
- EMI and RFI Filtration
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability
