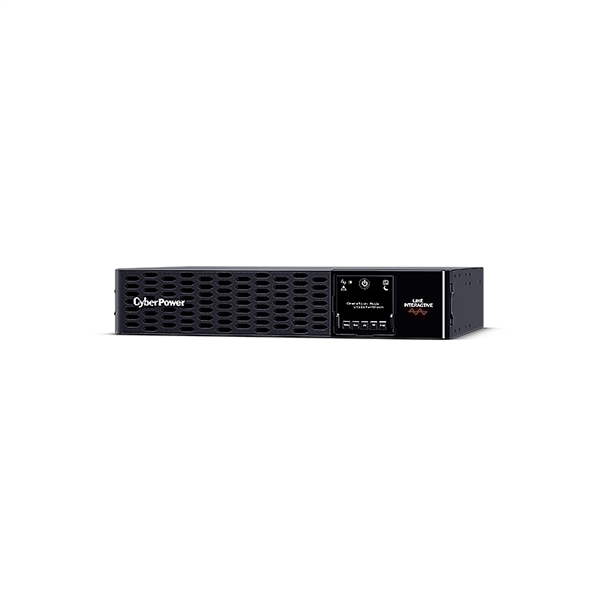

CYBERPOWER PRORACK/TOWER1500VA
Code: 8217936
- CyberPower Systems PRO Rack/Tower LCD 1500VA/1500W 2U Line Interactive UPS provides advanced power protection with a 3-year advanced replacement warranty and a 2-year warranty on internal batteries. The package includes a rail kit for easy installation.
Specifications:
- Form Factor: Rackmount/Tower
- UPS Topology: Line-interactive
- Energy Saving Technology: GreenPower UPS Bypass Technology
- Energy Star Qualified: Yes
- Active PFC Compatibility: Yes
- Nominal Input Voltage (Vac): 220 - 230
- 240
- Input Voltage Range (Vac): 159 - 288
- Adjustable Voltage Range (Vac): 151 - 302
- Input Frequency (Hz): 50 ±3 - 60 ±3
- Input Frequency Detection: Auto-sensing
- Rated Input Current (A): 10
- Input Connector Type: IEC C14
- Detachable Power Cord Plug Type: AU x 1
- Power Cord Length: 3m
- Output Capacity (VA): 1500
- Output Capacity (Watts): 1500
- On Battery Waveform: Pure Sine Wave
- On Battery Voltage(s) (Vac): 220 ±5% - 230 ±5%
- 240 ±5%
- On Battery Frequency (Hz): 50 ±1% - 60 ±1%
- Power Factor: 1
- Automatic Voltage Regulation (AVR): Double Boost, Single Buck
- Overload Protection: Internal Current Limiting, Circuit Breaker
- Total Outlets: 10
- Outlet Type: IEC C13 x 10
- Battery & Surge Protected Outlets: 10
- Critical Load Outlets: 5
- Non-Critical Load Outlets: 5
- Typical Transfer Time (ms): 4
- Battery Runtime at Half Load (min): 18.6
- Battery Runtime at Full Load (min): 6
- Battery Recharge Time (Hours): 3
- Start On Battery: Yes
- Built-in Battery Management Module: Yes
- User-replaceable: Yes
- Hot-swappable: Yes
- Battery Type: Sealed Lead-acid
- Battery Cartridge (RBP): RBP0129
- Battery Quantity (Each RBP) (pcs): 4
- Surge Suppression (Joules): 2430
- EMI/RFI Filtration: Yes
- Network Protection RJ45: 1-in, 1-out
- LCD Orientation: Rotatable LCD, Manual
- LCD Information Display: Operation Type, Power Status, Battery Status, Load Status, Fault & Warning, Event & Log
- LCD Setting & Control: Mode Setting, Alarm Setting, Input & Output, Battery Setting, Communication
- LED Indicators: Power On, Line Mode, Battery Mode, UPS Fault, Night Mode
- HID Compliant USB Port(s): 1
- Dry Contact (with Relay): Yes
- Emergency Power Off (EPO) Port: Yes
- Audible Alarms: Battery Mode, Low Battery, Overload, Overcharge, Overheat, UPS Fault
- Management Cable (pcs): Power Cord x3, USB Cable x1, Serial Cable x1, EPO Cable x1, Phone Line x1
- Ethernet Data Transmission Speed: Up to 1Gbps
- Power Management Software: PowerPanel Business (Recommended)
- SNMP/HTTP Remote Monitoring: Yes, with optional RMCARD205
- PowerPanel Cloud Service: Yes, 90 Days Free Trial
- Enclosure Construction: Metal
- Rackmount Rail: Yes
- Rackmount Ears: Yes
- Dimensions: 433 x 86.5 x 412mm
- Weight: 24.6kg
- Installed Rack Height (U): 2
- Certifications: CE, FCC Class B, UL, cUL, RCM, VCCI, UKCA
- RoHS: Yes
Features:
- Line-interactive UPS Topology
- Active PFC Compatible
- Toolless Battery Replacement
- High Output Power Factor
- Overload Protection
- Quick Charging Technology
- Surge and Spike Protection
- LCD Status Display
- Serial Connectivity Port
- PowerPanel Management Software
- Rack/Tower Convertible Configurations
- Energy Saving Technology
- Pure Sine Wave Output
- Battery Management Technology
- Automatic Voltage Regulation (AVR)
- Critical/Non-critical Load Outlets
- Hot-swappable Batteries
- EMI and RFI Filtration
- USB Connectivity Port
- Emergency Power Off (EPO) Port
- SNMP/HTTP Remote Management Capability
