CYBERPOWER SWITCHED EPDU 12AMP
Code: 8217923

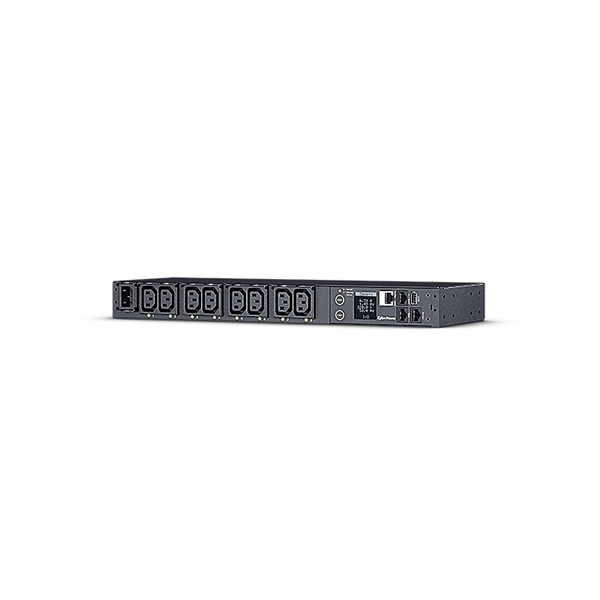

- CyberPower Systems provides the Switched ePDU 1RU Horizontal with a 12 Amp input, featuring SNMP Network Connection, 8 IEC-320 C13 outlets, and an IEC-320 C14 input. It includes a 2-year advanced replacement warranty.
Specifications:
- Nominal Input Voltage: 100-240 Vac
- Input Frequency: 50/60 Hz
- Maximum Input Current: 12 A (UL) - 10 A (CE)
- Input Connector Type: IEC C14 x 1
- Power Cord Length: 3.05m
- Output Voltage: Dependent on Input
- Idle Power Consumption: < 5 W
- Total Outlets: 8
- Outlet Type: IEC C13 x 8
- Remote Individual Outlet Control: Yes
- LCD Information Display: Input Voltage, Input Frequency, Current Level, Power Consumption, Network Information, Serial Number, Environment Status, Hardware Version, Firmware Version
- Hot-swappable LCD Module: Yes
- Auto LCD Orientation: Yes
- LCD Setting & Control: Outlet Control, LCD Settings, Reset/Reboot
- LED Indicators: PDU Status, Tx/Rx, Link, Outlet
- Outlet Metering Capability: 1%
- A-type USB Port: Yes
- Connectivity Ports: RJ45, RJ45 (for Serial), RJ45 (for ENVIROSENSOR/Daisy Chain In), RJ45 (for Daisy Chain Out)
- Environmental Sensor Supported: Yes
- User-upgradeable Firmware: Yes
- Power Management Software: PowerPanel Business (for small-medium scale), PowerPanel Enterprise (for large scale)
- Supported Protocols: IPv4/v6, SNMPv1/v3, HTTP/HTTPs, TCP/IP, UDP, DHCP, NTP, DNS, SMTP, SSH, SSL, TLS, Telnet, FTP, Syslog
- Authentication: RADIUS, LDAP, LDAPS, Windows AD
- Installed Rack Height: 1U
- Form Factor: 1U Vertical/Horizontal Rackmount
- Enclosure Construction: Steel
- Cord Retention Tray: Yes
- IEC Receptacle Locking: Yes
- External Site Ground Pin: Yes
- Adjustable Mounting Brackets: 2 Sets (L-short - L-long)
- Dimensions: 433 x 44 x 112mm
- Weight: 2.1kg
- Certifications: CE, FCC Class A, UL60950, UL62368, EN 55032 Class A
- RoHS Compliant: Yes
Features:
- Real-time Local/Remote Monitoring and Switching
- Operates under High Temperature
- 1% Measurement Accuracy
- Digital Real-time Load Display
- Hot-swappable LCD Design
- LED Status Indicator
- ENVIROSENSOR Support
- PowerPanel Management Software
- Cord Retention Tray
- Controllable Receptacles with Power Sequencing
- Ultra Low Power Consumption
- Industrial-grade Metal Housing
- User Configurable Color LCD
- Rotatable LCD for Proper Display Orientation
- Firmware Upgrade via USB
- User-upgradeable Firmware
- Adjustable Mounting Brackets
- IEC Receptacle Locking
