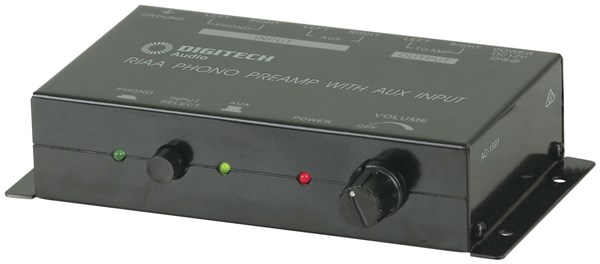

Digitech Phono Stereo Preamplifier
Code: 8066897
- This unit provides the necessary frequency equalisation and increases the signal level from your turntable so that it can be fed to your line-level amplifier. There is a second set of inputs for a CD player or other device.
AC1591
1 Year Warranty
240V Mains Power
Vinyl records have become all the rage again but you may encounter a couple of issues which are addressed by this unit:
Firstly, vinyl records are manufactured in a way that requires frequency equalisation of the turntable output to make them sound right. Secondly, if your amplifier doesn t have a phono input then you won t be able to listen to your records.
There is a front panel switch to choose between input devices and a volume control on the front panel to adjust the output level as necessary as your turntables' cartridge may provide a lower or higher output than expected. All connections are made with the popular RCA connectors. Power is provided by an included mains adaptor.
Features:
- Volume control
- Stereo RCA output
- Function can be set to mix or IND
- Screw mount holes
- Power: 12VDC at 500mA
- Input Impedance : 47KO
- Output Impedance : 100O
- Phono Amplitude Gain : 40dB (@ 1KHz)
- Auxiliary Amplitude Gain : 6 dB
- Maximum Input : 50mVpp
- Output Level : 5Vpp
- Frequency Response : 20 Hz to 20KHz
- Signal to Noise Ratio : 70dB
