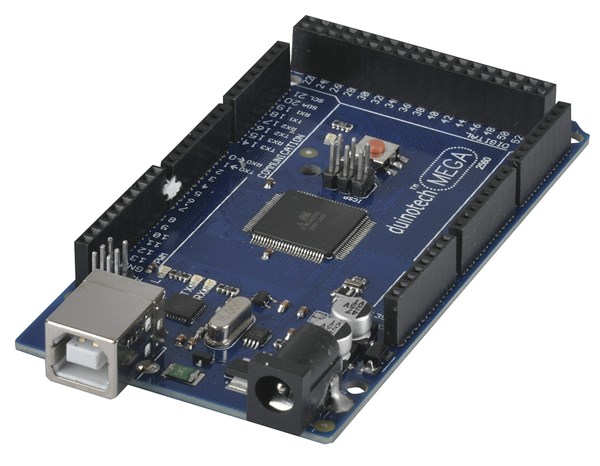

Duinotech MEGA 2560 r3 Main Board

Code: ELE/XC4420
Stock Status:
Delivery (2-5 Days)
  • Our most powerful Arduino compatible development board to run your biggest projects. Boasting the ATMega2560 microcontroller, more IO pins, more memory, more PWM outputs, more analogue inputs and more serial ports.

    XC4420

    Arduino? Compatible


    Duinotech MEGA Arduino -Compatible board boasts more IO pins, more memory, more PWM outputs, more analogue inputs and more Serial ports than the UNO board. When you have a project that just needs more inputs, outputs & memory than the Duinotech Classic (Uno) can deliver, the MEGA has them in spades. And with 8x the program memory, you have the room to write much larger programs to take full advantage of the increased IO. Despite its elongated size, standard shields will still drop straight onto this board.

    Features:
    Fully Arduino and DuinoTECH Compatible
    ATMega2560 Microcontroller
    EEPROM: 256KB
    Speed: 16MHZ
    ATMega16u2 USB-Serial Chipset
    IO:
         Digital IO: 54 pins (15 are configurable as Digital or PWM)
         PWM Capable: 15 pins
         Analogue Inputs: 16pins
         Serial Ports: 4 (1 is connected to on-board usb-Serial port)

        Input Voltage:
         5VDC Regulated via USB port or 5V pin
         7-14VDC via Vin pin
         On-board regulator supplies 5V when unit is powered via Vin pin



$59.35

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
