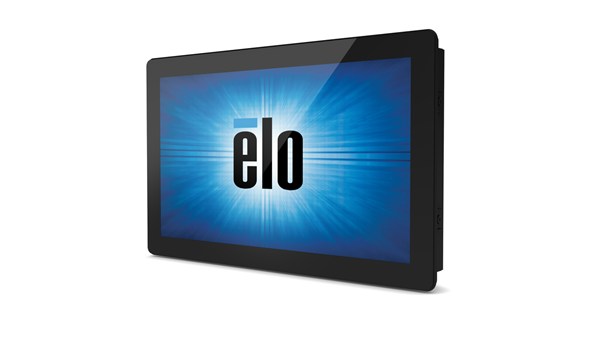

Elo 1593L 15.6 inch open frame touchscreen monitor Suitable for industrial, medical, or kiosk systems 10 point TouchPro projected capacitive touch technology 701899
The Elo 1593L 15-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Our TouchPro PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Specifications:
Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size: 15.6" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 344.232 x 193.536mm
Resolution: 1366 x 768
Horizontal Viewing Angle: 80 or 160 total
Vertical Viewing Angle: 80 or 160 total
Number of Colors: 16.7 million
Brightness (typical) LCD panel: 300 nits
Brightness (typical) TouchPro PCAP: 270 nits
Response Time-total (typical): 10ms
Contrast Ratio: 500:1
Input Video Format: HDMI, VGA, or DisplayPort
Touch Interface: USB
Input Voltage: 12VDC (PSU NOT included)
Power Consumption On: 13.6 W
Power Consumption Sleep: 1.5 W
Power Consumption Off: 0.5W
Monitor Dimensions: 376.8(W) x 221.1(H) x 46.3(D)mm
Weight: 3.02kg
