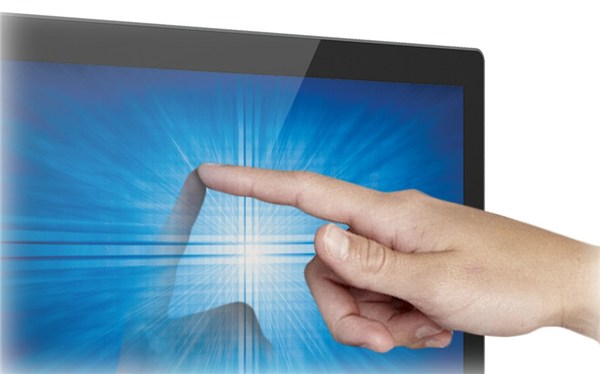

The Elo 2294L 21.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2294L provides stable, drift-free operation with outstanding image clarity and light transmission, for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.

The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) design means that it can be sealed to obtain an IP65 rating on the front side of the unit.

Specifications:

Enclosure Color: Black

Diagonal Size: 545mm (21.5'')

Aspect Ratio: 16:9

Controls: Menu, Up, Down, Select, Power

Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese

Maximum Resolution: 1920 x 1080

Viewing Angle: Horizontal: 89 or 178 total / Vertical: 89 or 178 total

Colors: 16.7 million

Contrast Ratio: 1000:1

Technology: PCAP - 10 Touch

Response Time-total (typical): 14 msec

Input: HDMI V1.3 Type A

          Analog VGA DB-15

          DisplayPort V1.1a

Input Video Frequency: Horizontal: 30 - 82 KHz

                                   Vertical: 50 - 75 Hz

Power Supply: External DC

Voltage: 12VDC +/- 5%

Power Connector: 2.1mm DC connector

Power: 25W

Weight: 5.1kg

Operating Temperature: 0 C to 40 C

MTBF: 50,000 hours demonstrated

Warranty: 3-year
