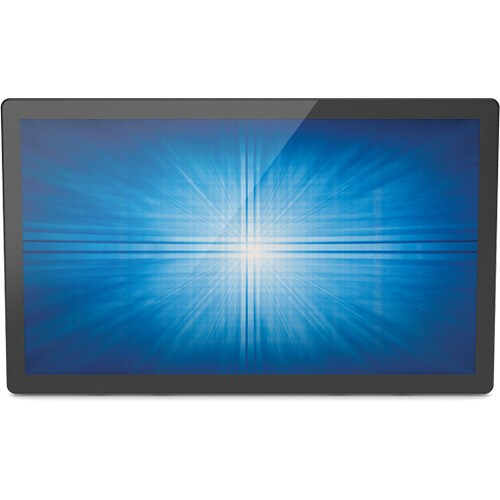

The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Elo E493782 701987
3 Year Warranty
The Elo 2494L 24-inch open frame touchscreen display delivers an industrial-grade solution that is cost-effective for OEMs and systems integrators requiring a reliable product for their customers. Designed with reliability from the start, Elo's open frames deliver outstanding image clarity and light transmission with stable, drift-free operation for accurate touch responses. The 90-Series product line is available in a wide range of sizes, touch technologies and brightness, offering the versatility needed for commercial kiosk applications from self-service and gaming to industrial automation and healthcare.
Our TouchPro PCAP technology supports touch through functionality for installations that require a front layer of glass with thickness s up to 6mm or solutions that require specific IP ratings. Whether you need a flush-mounted display or one that is fully-encased behind a cover glass, our robust PCAP Open Frames are purpose-built for durability in various applications and environments: from self-service kiosks to highly used gaming cabinets to harsh industrial machines.
Specifications:
Touch Technology & Capacity: PCAP (TouchPro Projected Capacitive) - 10 Touch
Diagonal Size: 23.8" diagonal, Active matrix TFT LCD (LED)
Aspect Ratio: 16:9
Active Area: 527.04 x 296.46mm
Resolution: 1920x1080
Horizontal Viewing Angle: 89 or 178 total
Vertical Viewing Angle: 89 or 178 total
Number of Colors: 16.7 million
Brightness (typical) LCD panel: 250 nits
Brightness (typical) TouchPro PCAP: 225 nits
Response Time-total (typical): 16ms
Contrast Ratio: 3000:1
Input Video Format: HDMI, VGA, or DisplayPort
Touch Interface: USB
Input Voltage: 12VDC (PSU NOT included)
Input Connector: DC Jack Pin OD: 2.0mm, Barrel ID: 6.4mm, Barrel len 8.8mm
Power Consumption On: 27.3 W
Power Consumption Sleep: 1.5 W
Power Consumption Off: 0.5W
Enclosure Colour: Black
Operating Temperature: 0 C to 40 C
Humidity: Operating: 20% to 80%
Sealability: Touchscreen sealed to bezel, Touchscreen sealed to LCD
Mounting Options: 200x100mm VESA mount on rear with 4-hole mounting interface on all four sides.
Monitor Dimensions (PCAP): 569.2(W) x 341.1(H) x 37(D)mm
Monitor Dimensions (Bezel): 562.4(W) x 326.6(H) x 41.7(D)mm
Weight: 6.39kg
