MGG805

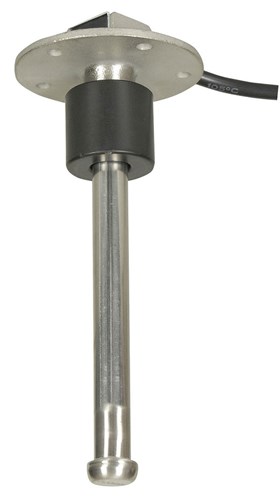

These senders are very sturdily constructed indeed. The main body/flange is made out of solid & cast 316 marine grade stainless steel Tig welded together. The flange has 5 x fixing holes to SAE standard.

5 x M5 stainless steel screws supplied

IP67 protection

Will work with petrol (extra gasket supplied,) Diesel, Grey water or Black water

Operating temp -40 to +85 C (some tank fluids may freeze at approx. +/- 1 C.)

Length of connecting wire 450mm

Resistance 0-190 Ohm (0 Ohms when empty, 190 Ohms when full)

 0.125W Shaft Length (Depth) Useful range of float
