Heavy Duty Eye-Eye Spring Kit 60mm 775kg Single

Code: 8082221
Stock Status:
Delivery (2-5 Days)
  • Trailer heavy duty off road spring kit 7 leaf - single Rated for 775kg each (1550kg per pair) 60mm AL-KO 576077

    TTK135

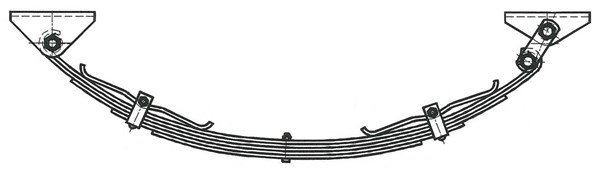

    This is a truly serious spring set capable of reliably carrying heavy loads including off-road. It consists of a 7 leaf 60mm wide spring with eyes at both ends for connection to the chassis couplings. Supplied with fixed mounts for one end and the other is coupled via shackle bolts and shackle plates.

    Each kit includes one spring and mounts
    Load rating based on two spring kits fitted to a single chassis: 1530kg
    Length of spring eye-to-eye: 841mm
    Free camber: 158mm
    Chassis frame fastening to shcakles: bolt
    Shackle bolt diameter: 16mm
    Finish: black oven enamel
    Single axle setup dimensions (no load): 865/875mm

$296.05
