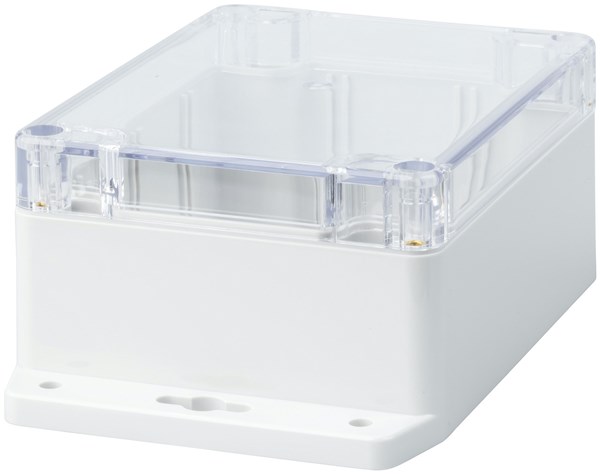

IP65 Sealed Polycarbonate Enclosure with Mounting Flange 115(W) x 90(D) x 55(H)mm
Code: 8009352
- Made with Polycarbonate material. Moulded in light grey. Operating temperature: -40 to +125C
HB6251
Features:
Made with Polycarbonate material
Moulded in light grey.
Operating temperature: -40 to +125C
The lid and base incorporate a tongue and groove sealing system with a neoprene gasket
Lid fixing screws are M-4 stainless steel (non-magnetic) into threaded brass inserts
Wall mounting holes and lid fixing screws are outside the sealing area thus preventing the ingress of moisture and dust
Designed to IP65 of IEC 529 and NEMA 4 (dust and hose proof)
Internal guide slots for mounting PCB assemblies vertically (not on HB6230)
Light Grey:
HB6230 82(W) x 80(D) x 55(H)mm
HB6212 115(W) x 65(D) x 40(H)mm
HB6216 115(W) x 90(D) x 55(H)mm
HB6218 171(W) x 121(D) x 55(H)mm
HB6224 171(W) x 121(D) x 80(H)mm
HB6220 222(W) x 146(D) x 55(H)mm
Light Grey with Clear Lid:
HB6246 115(W) x 90(D) x 55(H)mm
HB6248 171(W) x 121(D) x 55(H)mm
HB6254 171(W) x 121(D) x 80(H)mm
HB6258 222(W) x 146(D) x 55(H)mm
Light Grey with Mounting Flange:
HB6217 Box: 115(W) x 90 (D) x 55(H)mm
Base: 145(W) x 90(D)mm
HB6219 Box: 171(W) x 121(D) x 55(H)mm
Base: 201(W) x 121(D)mm
HB6221 Box: 171(W) x 121(D) x 80(H)mm
Base: 201(W) x 121(D)mm
