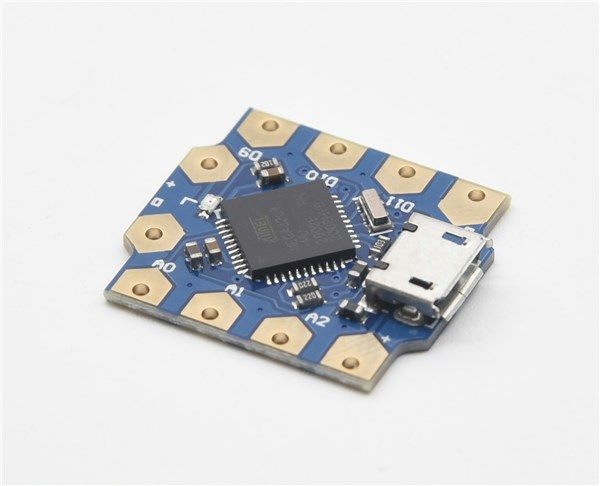

Leonardo Tiny Atmega32U4 Main Board

Code: 8008715
Stock Status:
Delivery (2-5 Days)
  • This mighty mouse of the Arduino world boasts the popular Leonardo processor on a tiny form factor for shrinking those projects you'd like to be more compact.

    XC4431

    This Arduino compatible development board is a smaller version of the popular Leonardo. It measures just 23 x 20mm and is a great choice when you need a low cost and compact Arduino project. The power and three of its' analogue and digital pins go to large gold-plated tabs, making them suitable to connect alligator clips or for sewing onto clothing with conductive thread (sold separately). The board features a 32u4 ATMEL processor with a 16MHz clock, 10 x pins, consisting of  4 x  power, 3 x analogue I/O pins, and 3 x digital I/O pins. 500mA output on VCC pins

    Specifications:
    16MHz Clock Speed
    32kB Flash Memory (4kB used by bootloader)
    1kB EEPROM Memory
     Power in 5VDC via Power In Pins
     Power Out 5VDC via Power Out Pins
     Digital Output x 3
     Analogue Output x 3

$21.33

EACH
