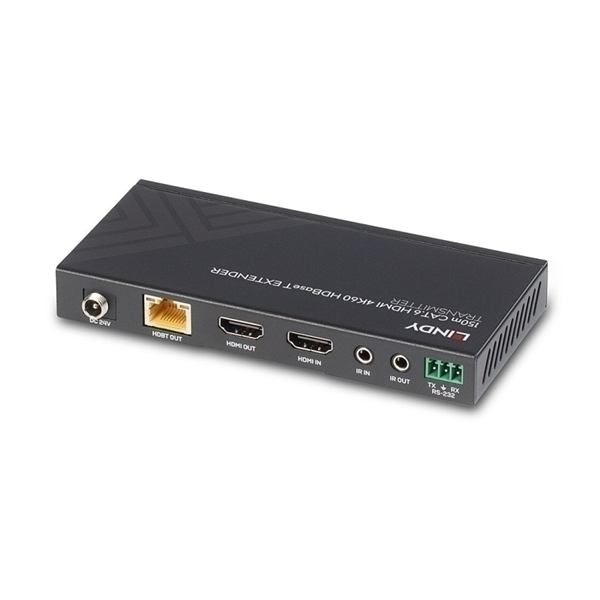

LINDY 150M CAT6 HDMI EXT
Code: 8219579
- Lindy 150m CAT6 HDMI Extender
Specifications:
- AV Interface: HDMI
- Standard: HDMI 2.0
- Supported Bandwidth: 18 Gbps
- Maximum Distance: 70m at 3840x2160@60Hz 4:4:4 8bit, 100m at 3840x2160@30Hz 4:4:4 8bit, 150m at 1280x720@60Hz
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass Through: Yes
- Supported Audio: HDMI Audio Pass-through
- IR Support: 20KHz - 60KHz
- CEC Support: Yes
- Serial Interface: RS-232 (Bi-directional)
- Transmission Protocol: HDBaseT
- Transmission Medium: 1 x Cat.6
- Chipset: VS010-A0
- Special Features: HDMI Loop Out Port, PoC (Power over Cat.6)
- Transmitter Input: HDMI Type A (Female), IR (Female)
- Transmitter Output: HDMI Type A (Female), RJ-45 (Female), IR (Female)
- Receiver Input: RJ-45 (Female)
- Receiver Output: HDMI Type A (Female), 3.5mm (Female)
- Bi-directional Ports: RS-232 (Female)
- Power: 5.5/2.1mm
- Dimensions: 140 x 65 x 18mm
- Weight: 0.472kg per unit
- Power Requirements: 24VDC 1A
- Warranty: 2 years
- Certifications: CE, UKCA, FCC, RoHS, REACH
Features:
- Distributes HDMI resolutions up to 150m over Cat.6 network cable using HDBaseT and Long Reach technology
- Supports HDMI 18G resolutions up to 4K 3840x2160@60Hz 4:4:4
- RS-232 CEC pass-through and bi-directional IR for easy control
- Supports PoC (Power over Cable), requiring power supply connection from only one side
- 2-year warranty
