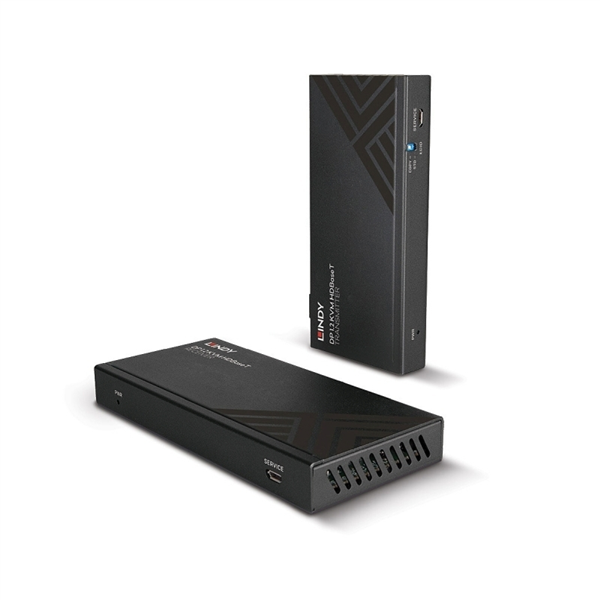

LINDY 150M CAT6 KVM EXT
Code: 8219596
- 150m Cat.6 DisplayPort 1.2, USB, IR & RS-232 HDBaseT KVM Extender
Specifications:
- AV Interface: DisplayPort
- Interface Standard: DisplayPort 1.2, USB 1.1
- Supported Bandwidth: 21.6Gbps
- Maximum Distance: 150m
- Maximum Resolution: 3840x2160@60Hz 4:4:4 8bit
- HDCP Support: 2.2
- EDID Pass-Through: Dip Switch with copy function
- Supported Audio: Pass-Through
- IR Support: 20 - 60KHz
- Serial Interface: RS-232 Pass Through
- Transmission Protocol: HDBaseT
- Transmission Medium: Cat.6
- Chipset: VS010-A0
- Special Features: Bi-directional IR, RS-232, PoC
- Transmitter Input: DP (Female), USB Type B (Female), 3.5mm IR (Female)
- Transmitter Output: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Input: RJ-45 (Female), 3.5mm IR (Female)
- Receiver Output: DP (Female), 2x USB Type A (Female), 3.5mm IR (Female)
- Bi-directional Ports: RS-232 3-Pin Terminal Block
- Power: 5.5/2.1mm
- Dimensions: 140x65x18mm each unit
- Housing Material: Metal
- Net Weight: 0.8kg
- Operating Temperature: 0°C - 40°C
- Storage Temperature: -20°C - 60°C
- Humidity: 20 - 90% RH (non-condensing)
- Power Requirements: 24VDC 1A
- Colour: Black
- Packaging Type: Carton Box
- Packaging Dimensions: 245x75x185mm
- Gross Weight: 1.02kg
- Warranty: 2-year
- Product Compliance: CE, UKCA, FCC, RoHS, REACH & California Proposition 65
Features:
- Extends DisplayPort signals up to 150m over Cat.6 network cable via HDBaseT technology
- Supports resolutions up to 4K@60Hz 4:4:4
- USB ports for mouse and keyboard connection
- Bi-directional IR & RS-232 control and PoC (Power over Cable) function
- 2-year warranty
