LINDY 1M USB 2.0 TYPE C CABLE
Code: 8219390

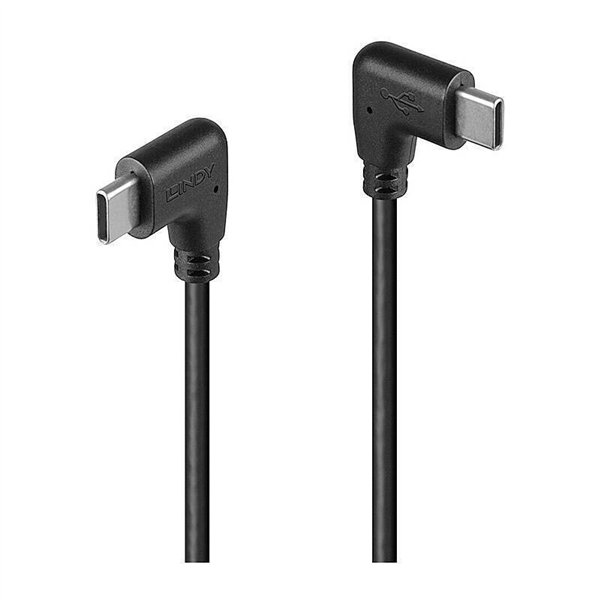

- Lindy 1m USB 2.0 Type C Cable, 90° Right Angle
**Features:**
- Ideal for commercial and high-performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Durable PVC housing with gold-plated connectors and contacts
- Double-shielded cable with corrosion-resistant tinned copper conductors
- USB 2.0 standard with a 10-year warranty
**Specifications:**
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 0.5-3m: 0.5MHz – 400MHz < 5.8dB
- Minimum Bend Radius: 45mm (1.77in)
- Operating Temperature: -20°C to 80°C (-4°F to 176°F)
- Storage Temperature: -25°C to 85°C (-13°F to 185°F)
**Connectors:**
- Connector A: USB 2.0 Type C Male
- Connector B: USB 2.0 Type C Male
- Housing Material: PVC
- Connector Plating: 24K Gold Plated
- Pin Construction: Phosphor Bronze
- Pin Plating: 24K Gold Plated
- Dimensions: 11.0x7.3x21.65mm (0.43x0.29x0.85in)
**Cable Construction:**
- Standard: USB 2.0
- Color: Black
- Type: Round
- Jacket Diameter: 4.5mm (0.18in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge: 24/28/32AWG
- Shielding: Copper Braid 85%
**Miscellaneous:**
- Packaging Type: Polybag
- Warranty: 10 Years
- Certifications: RoHS, REACH, UL
