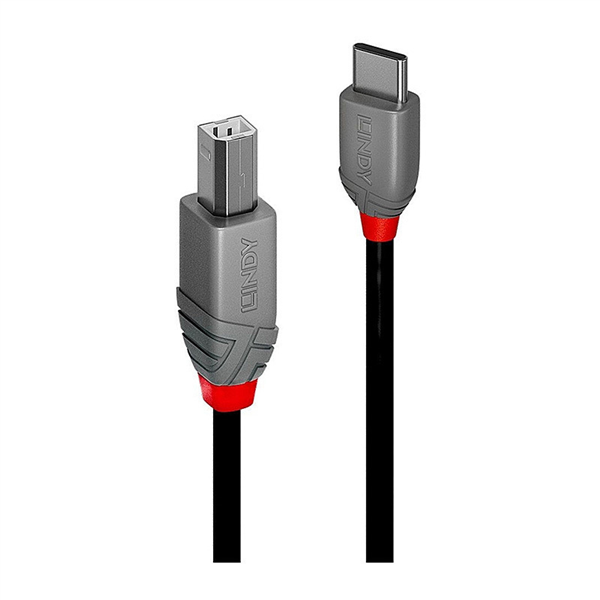

LINDY 1M USB 2.0 TYPE C TO B
Code: 8219547
- 1m USB 2.0 Type C to B Cable, Anthra Line
**Features:**
- Ideal for commercial and high-performance AV and IT installations
- Supports data transfer speeds up to 480Mbps
- Durable PVC housing with nickel connectors and gold-plated contacts
- Double-shielded cable with corrosion-resistant tinned copper conductors
- Backed by a 10-year warranty
**Specifications:**
- Supported Bandwidth: 480Mbps
- Nominal Attenuation: 1-400MHz < 5.8dB
- Minimum Bend Radius: 25mm (0.98in)
- Operating Temperature: 0°C - 40°C (32°F - 104°F)
- Storage Temperature: 0°C - 70°C (32°F - 158°F)
**Connectors:**
- Connector A: USB 2.0 Type C Male
- Connector B: USB 2.0 Type B Male
- Housing Material: PVC
- Connector Plating: Nickel
- Pin Construction: C: High conductivity copper, B: Brass
- Pin Plating: Gold
- Dimensions (approx.): C: 10.9x28.3x7.2mm (0.43x1.11x0.28in), B: 11.8x47x10.2mm (0.46x1.85x0.4in)
**Cable Construction:**
- Standard: USB 2.0
- Color: Black
- Type: Round
- Jacket Diameter: 4.4mm (0.17in)
- Jacket Material: PVC
- Conductor Material: Tinned Copper
- Conductor Gauge Power: 26AWG
- Conductor Gauge Data: 28AWG
- Shielding: Aluminium Magnesium Braid 65%
- Shielding in Connector Headshell: Copper foil
**Miscellaneous:**
- Packaging Type: Polybag
- Warranty: 10 years
- Certifications: RoHS, REACH, California Proposition 65, UL
