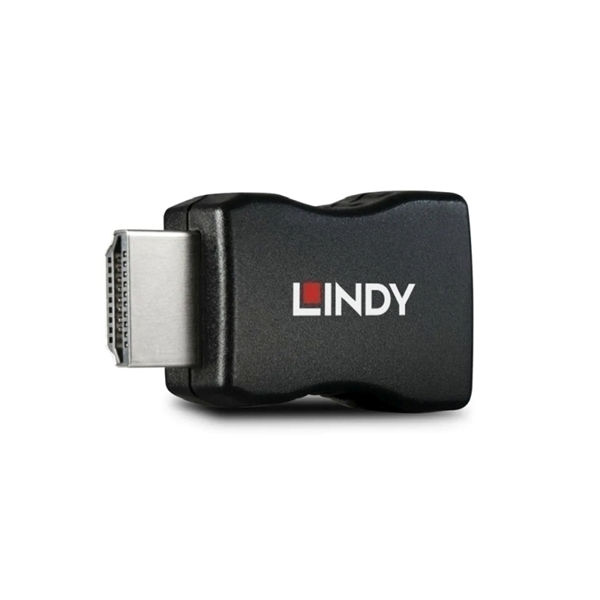

LINDY HDMI 18G EDID EMULATOR
Code: 8219393
- Lindy HDMI 2.0 18G EDID Emulator
Specifications:
- AV Interface: HDMI
- Interface Standard: HDMI 1.4
- Supported Bandwidth: 10.2Gbps
- Maximum Resolution: 3840 x 2160 @ 30Hz
- Audio EDID: LPCM 2-channel - 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
- HDCP Support: 1.4
- Input: HDMI Type-A Male
- Output: HDMI Type-A Female
- Power: Via HDMI Source Interface
- Housing Material: ABS
- Dimensions: 24 x 43 x 12.3mm
- Weight: 0.008kg
- Warranty: 2 Years
- Certifications: CE - FCC
- RoHS
- REACH
Features:
- Continuous HDMI EDID information emulation
- Supports resolutions up to 3840x2160@30Hz with HDCP pass-through
- Compatible with 32120 for cloning
- Powered via HDMI Source Interface
- 2-Year Warranty
Video EDID Resolutions & Framerate:
- 640 x 480p 60/72/75Hz
- 720 x 400p 60Hz/70Hz
- 720 x 480i 60Hz
- 720 x 576p 50Hz
- 720 x 576i 50Hz
- 800 x 600p 56/60/72/75Hz
- 832 x 624p 75Hz
- 1024 x 768p 60/70/75Hz
- 1280 x 800p 60Hz
- 1280 x 720p 50/60Hz
- 1152 x 864p 75Hz
- 1152 x 870p 75Hz
- 1280 x 1024p 60/75Hz
- 1280 x 960p 60Hz
- 1440 x 900p 60Hz
- 1600 x 1200p 60Hz
- 1680 x 1050p 60Hz
- 1920 x 1080i/p 50/60Hz
- 1920 x 1200p 60Hz
- 2560 x 1440p 60Hz
- 3840 x 2160p 24/30Hz
