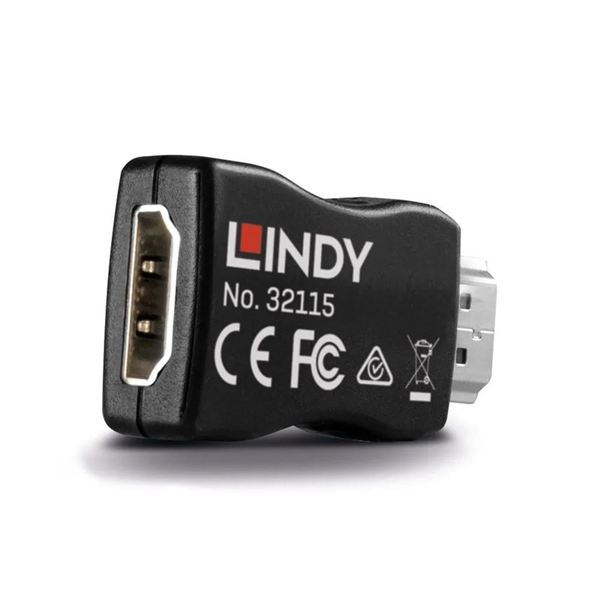

LINDY HDMI 2.0 EDID EMULATOR
Code: 8219394
- The LINDY HDMI 2.0 EDID Emulator is designed to continuously emulate HDMI EDID information, supporting resolutions up to 3840x2160 at 60Hz, including HDCP 2.2 pass-through and HDR. It utilizes cloned data or, if unavailable, stored pre-set screen resolutions and timings.
**Specifications:**
- **AV Interface:** HDMI
- **Interface Standard:** 2.0
- **Supported Bandwidth:** 18 Gbps
- **Maximum Resolution:** 3840x2160@60Hz 4:4:4 8Bit / 4:2:2 12Bit
- **Video EDID:** Various resolutions from 640x480p to 3840x2160p
- **Audio EDID:** LPCM 2-channel, 16/20/24 bit depths at 32/44/48/88/96/176/192 kHz
- **HDCP Support:** 2.2
- **Special Features:** High Dynamic Range Support, CEC Compatible
- **Input:** HDMI Type A Male
- **Output:** HDMI Type A Female
- **Power:** Via HDMI Source Interface
- **Dimensions:** 24x34.3x11.8mm
- **Housing Material:** ABS
- **Net Weight:** 0.008kg
- **Operating Temperature:** 0°C - 60°C
- **Storage Temperature:** -10°C - 70°C
- **Humidity:** 0 - 80% RH (non-condensing)
- **Color:** Black
- **Warranty:** 2-Year
- **Certifications:** CE, FCC, RoHS & REACH
**Features:**
- Continuous HDMI EDID emulation
- Supports up to 3840x2160@60Hz with HDCP 2.2 and HDR
- Utilizes cloned or pre-set screen resolutions/timings
- Powered via HDMI Source Interface
- 2-Year warranty
**Package Includes:**
- HDMI 4K EDID Emulator
- Lindy Manual
This product is ideal for professionals seeking reliable HDMI EDID emulation with high-resolution support and advanced features.
