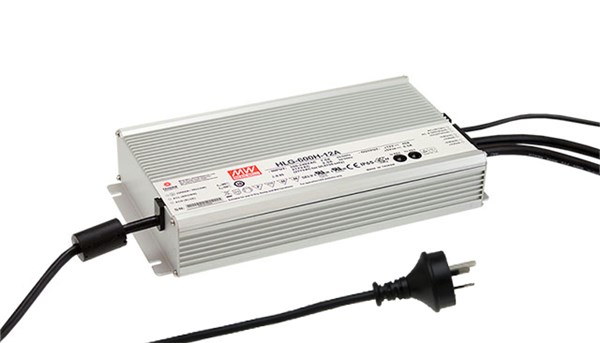

Mean Well 12V 40A 480W HLG Series LED Power Supply with 3-in-1 Dimming
Code: ELE/MP4157
- 12V 40A 480W HLG Series LED Power Supply with 3-in-1 Dimming Mean Well HLG-600H-12B AU/NZ Mains Lead Input Bare Lead Output
MP4157
HLG-600H series is a high power AC/DC LED driver featuring dual mode constant voltage and constant current output. HLG-600H operates from 90-305VAC and offers models with different rated voltage ranging between 12V and 54V. Thanks to the high efficiency up to 96% and fanless design, the entire series is able to operate for -40 to +90 C case temperature under free air convection. The metal housing and IP65 or greater ingress protection level allows this series to fit both indoor and outdoor applications. HLG-600H is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Applications:
LED high-bay lighting
Parking space lighting
LED stage and event lighting
LED greenhouse lighting
Specifications:
Model: HLG-600H-12
Rated Current: 40A
Rated Power: 480W
Nominal Voltage: 12VDC
Output Function: 3 in 1 dimming
Input Voltage: 90-305VAC or 127-431VDC
Input Connection: Pre-wired with 3 pin AU/NZ Mains Plug
IP Rating: IP67
Please note: Prices are shown including GST (where applicable) and are in AUD$
