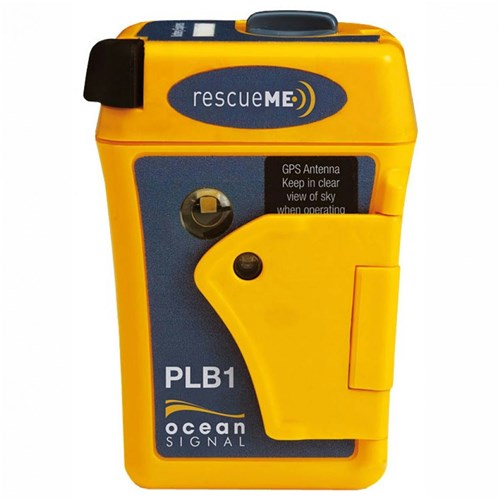

Wherever you are, at sea, on land, the rescueME PLB1 provides the reassurance that global emergency services can be alerted by the press of a button.



The rescueMe PLB1 can be operated with a single hand in even the most challenging situations.



A simple spring loaded flap covers the activation button preventing inadvertent use.



OS-rescueME-PLB-tech-image-01rescueME PLB1 works with the only officially recognised worldwide dedicated search and rescue satellite network (operated by Cospas Sarsat). As this is funded by governments there are NO CHARGES to use this service.



When activated the rescueME PLB1 transmits your position and your ID to a Rescue Coordination Center via satellite link.



Rescue services nearest to your are promptly notified of your emergency and regularly advised of your current location to assist prompt rescue.



406MHz Satellite Transmitter
Frequency: 406.040MHz
Tolerance: 1kHz
Output Power: 5watts (nominal)
Stability: 2ppb/100ms
Modulation: Phase 1.1radians (peak)
Emission Designator: 16K0G1D
Encoding: Bi-phase L
Data Rate: 400bps
Duration: 520ms



121.5MHz Homing Beacon
Frequency: 121.5MHz
Stability: 50ppm
Output Power: 25-100mW PERP
Modulation: Swept Tone AM
Emission Designator: 3K20A3X
Modulation Depth: 85-100%
Sweep Range: 400Hz 1300Hz



Sensitivity Cold Start: -148dBm
Sensitivity Re-acquisition: -163dBm
Satellites channels tracked: 60
GPS Antenna: Microstrip patch

;Low Duty Cycle Strobe Light
Light Type: High intensity LED
Output Power: ~1candela



Environmental
Operating Temperature Range: -20 C to +55 C
Storage Temperature Range: -30 C to +70 C
Waterproof: 15metres at +20 C
Drop: 1metre @ -30 C



Standards
Cospas-Sarsat: T.001 / T.007
ETSI: EN302 152
RTCM: SC11020
FCC: CFR47 part 95K



Battery
Type: Lithium Primary
Chemistry: Manganese Dioxide (LiMnO2)
Operational Life: >24hours @ -20 C
