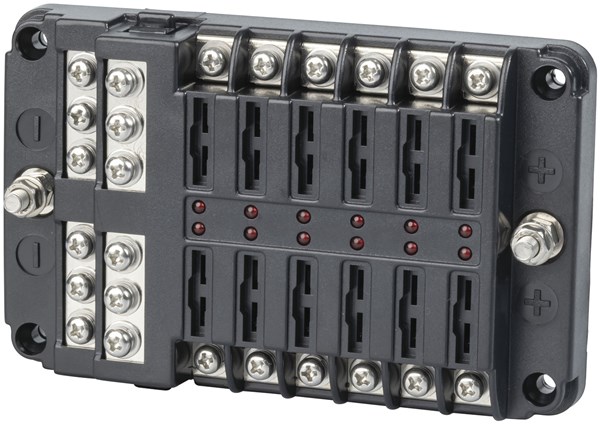

Powertech 12 Way Fuse Block with Bus Bar

Code: ELE/SZ2032
Stock Status:
Delivery (2-5 Days)
  • This versatile fuse block provides 12 way fused power distribution from your positive terminal and fits up to 12 standard blade fuses rated up to 30 amps each. The bus bar is distribution for the negative wires. Comes with cover (not pictured).

    SZ2032

    This unit is especially handy in a boat or caravan which may not have a chassis-ground type system. Each fuse output accepts up to a 30 amps, up to 100 amps combined, with handy fuse-blown indication. Fuses not included, uses standard automotive fuses.

    Features:
    • Up to 30A per output
    • Red LED blown fuse indication
    • Negative bus bar

    Specifications:
    • Main Input Line:
      Terminal Rating: M5 Threaded Studs (32VDC, 100A maximum)
      Wire Size: 4-6 AWG
    • Single Output Line:
      Terminal Rating: M4 Threaded Studs (32VDC, 30A maximum)
      Wire Size: 12-16 AWG
    • Terminals: Nickel Plated Copper
    • Screws: Stainless Steel


$34.11

EACH

Add

Please note: Prices are shown including GST (where applicable) and are in AUD$
