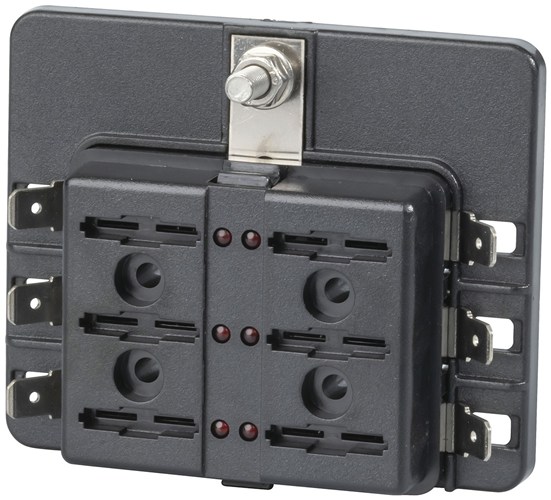

Powertech 6 Way Blade Fuse Block with Spade Terminals
Code: 8066970
- This versatile fuse block provides 6 way fused power distribution from your positive terminal and fits up to 6 standard blade fuses rated up to 30 amps each. Comes with cover, labelling system and blown fuse indicator.
SZ2096
1 Year Warranty
A convenient 6-way fuse block with integrated fuse blown indicator LEDs. The clear plastic cover allows you to quickly fault-find without disturbing your wiring. Includes convenient spade output connections for straight forward connections. Suitable for use in 12-24V systems, 30A max per fuse channel. Input cable up to 4-gauge. Uses standard automotive blade fuses, and includes a handy sheet of common labels, to make identification of connections even easier.
Features:
- Red LED blown fuse indicators
- Convenient spade terminal connections
- Clear fuse cover
Specifications:
Input Terminal Rating: 32VDC @ 100A Max.
Input Wire Size: 4-6 AWG
Output Terminal Rating: 30A Max. per Circuit
Output Wire Size: 12-16 AWG
Fuses: Automotive Blade up to 30A
Weight: 68g
Dimensions: 90(W) x 70(D) x 40(H)mm
Please note: Prices are shown including GST (where applicable) and are in AUD$
