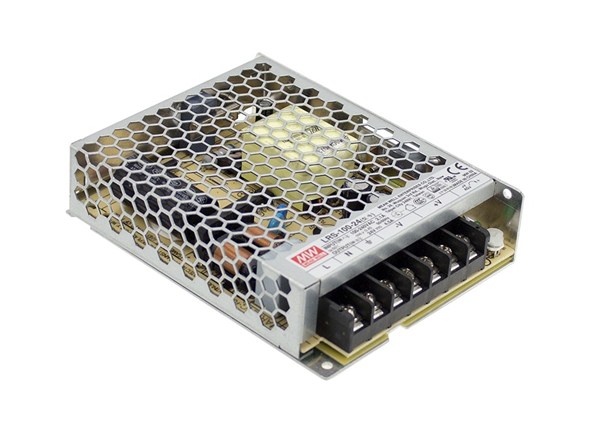

PSU SMPS 5V 18A 90W M/FRM LRS-100-5
Code: 8079569
- PSU SMPS 5V 18A 90W M/FRM LRS-100-5
MP3962
A highly efficient, fixed voltage, no load low power (<0.2~0.75W) consumption enclosed power supply for a wide range of industrial applications. It is more compact and efficient than previous generation models. The 30mm low profile design allows it to be built into 1U rack enclosures, while the metallic mesh case enhances the heat dissipation. It is also capable of operating at altitudes up to 5000 metres. Not only will it satisfy every kind of industrial related application but can also be utilised for household appliances thus accounting for a broader coverage across diverse industries. See our website for a full datasheet. Backed by 3 year warranty.
Features:
Full range 85~264VAC input
Withstand 300VAC surge input for 5 seconds
High efficiency, long life and high reliability
Operates from -30 C to 70 C under air convection without a fan
Extremely low no load power consumption
Complete protective functions
Power on LED indicator
5G anti-vibration capability
Complies with international safety standards.
100% full load burn-in test
3 year warranty
