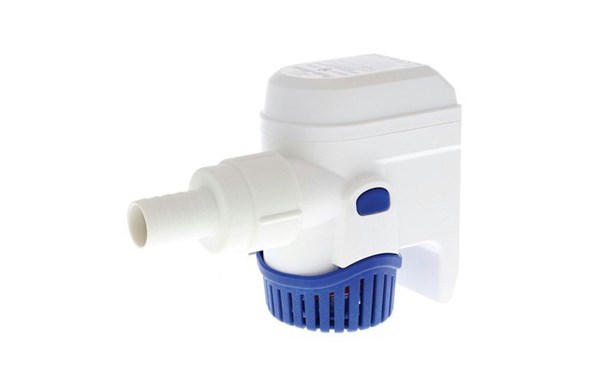

Rule-Mate RM500B 500GPH 12V Automatic Bilge Pump
Code: ELE/MPA113
- The Rule-Mate fully automatic submersible bilge pumps Auto-sense water level 500 US Gallons per hour - 31 Litres per minute at open flow Built-in thermal cut-out Anti-Airlock design Rule RWB822
MPA113
The Rule-Mate fully automatic submersible bilge pumps offer a more compact size with high performance & reliability. The RULE brand builds on more than 50 years of operational experience, innovation, design excellence & application expertise to offer modern solutions to todays boat owners and boat builders.
The Rule-Mate bilge pumps operate using an internal water level sensor. When the bilge water level reaches 62mm height the pump will automatically activate, removing water from the bilge. When the water level goes down to 16mm height the pump will automatically shut off until the water level rises again. Hidden air vents in the body of the pump helps prevent air locking and challenging plumbing installations. A check valve is included in the discharge nozzle to prevent water running back into the bilge.
500 US Gallons per hour - 31 Litres per minute at open flow
Supplied with 2 x straight hose outlets -1 x 25mm (1") & 28mm (1 1/8")
Features:
More compact size - only 2/3 the size of the previous versions
Auto-sense intelligence fully automatic water level sensing
Fully automatic pump in 1 common compact housing
Pump and sensor are internally common wired for easy installation
No battery drain other than when the pump is in use
Optimised impeller design gives up to 10% higher flow than previous versions - at the same current
Built-in thermal cut-out (TCO) to protect the pump & the vessel
Supplied with back flow prevention - check valve in outlet port
Anti-Airlock design has hidden air vents in the pump body
Safety back-up operating mode prevents continuous running if the sensor or impeller is fouled by debris
Pump check feature - touch and hold for 5 seconds on the "touch here" button on the pump casing - to instantly check the operation of the pump
Threaded discharge nozzle for easier installation and maintenance
Removable strainer to access impeller area to clear any debris
A 3rd wire allows for manual over-ride using a Rule switch panel
