SOLAR PNL 12V 40W MONO PWRTECH 661X402MM
Code: 8206752

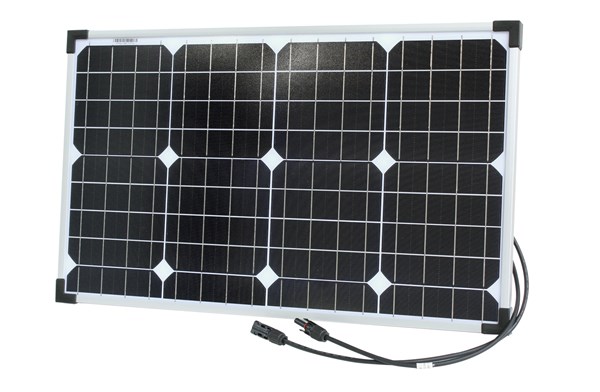

- The ZM9056 monocrystalline solar panel is designed for superior performance and affordability. With a compact and efficient design, it delivers 40W of output power and is equipped with industry-standard MC4 connectors. The panel features 36 pieces of 156x156mm A-grade solar cells, optimized for low-light conditions, and is constructed with a robust anodized aluminum frame and 3.2mm low iron tempered glass. This glass is anti-reflective and hydrophobic, enhancing light absorption and minimizing power loss. The integrated junction box and bypass diodes prevent overheating and the hot spot effect. Installation is straightforward, requiring minimal maintenance, and the panel is compatible with standard inverters and mounting systems.
The product is backed by a 25-year limited warranty, covering construction and manufacturing defects for 5 years and ensuring electrical output remains above 80% of the original rating for 25 years.
Specifications:
- Maximum Power (Pmax): 40W
- System Output Voltage: 12V
- Open Circuit Voltage (Voc): 21.5V
- Short Circuit Current (Isc): 2.5A
- Voltage at Max Power (Vmp): 17.2V
- Current at Max Power (Imp): 2.33A
- Termination: PV Plug
- Cable Length: 900mm
- Dimensions: 664 x 408 x 25mm
This high-performance solar panel is ideal for those seeking reliable and efficient solar energy solutions.
